Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 131

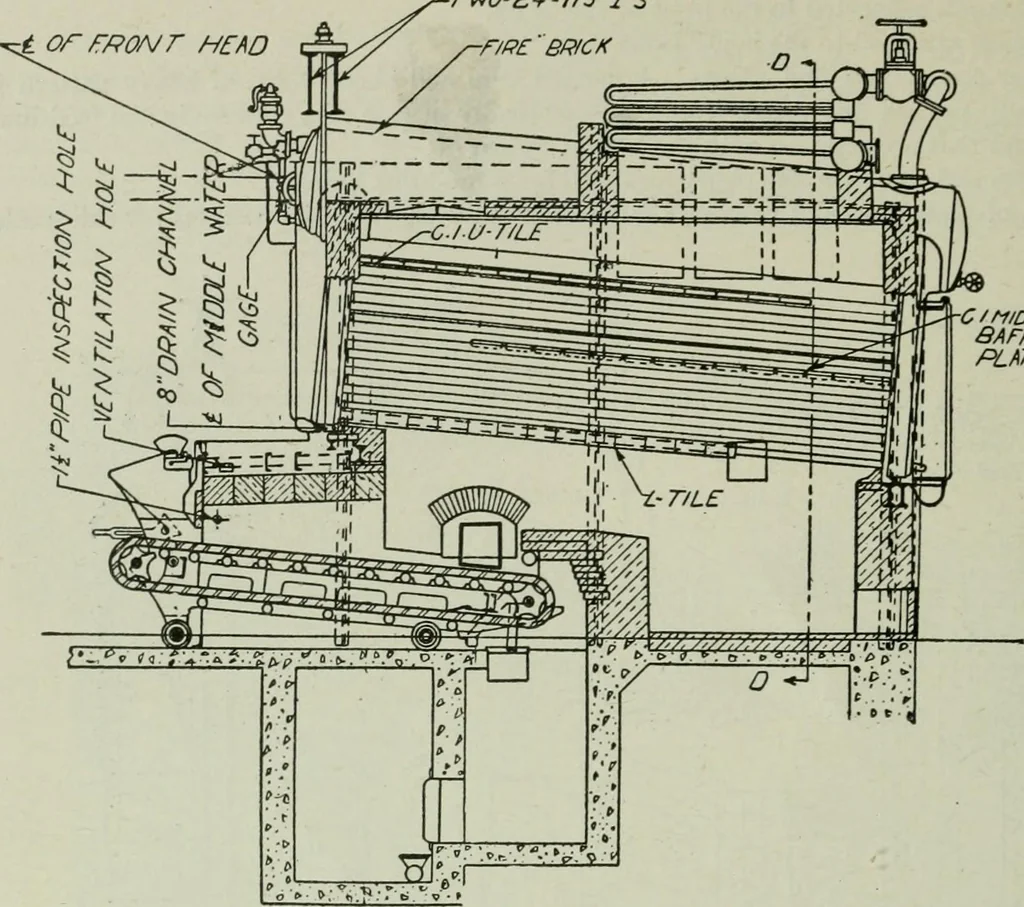

e equipped with a specialnozzle for blowing dust and soot from the tubes. The Heine Boiler. Fig. 24 shows a longitudinal section through the Heine boiler. In this type of water-tube boiler the steam drum and tubes are parallel with one anotherand inclined at an angle of about 22 degrees with the… … LONG/TUOINAL SECTIONFig. 24. Heine Boiler with Chain-Grate Stoker and Superheater.
