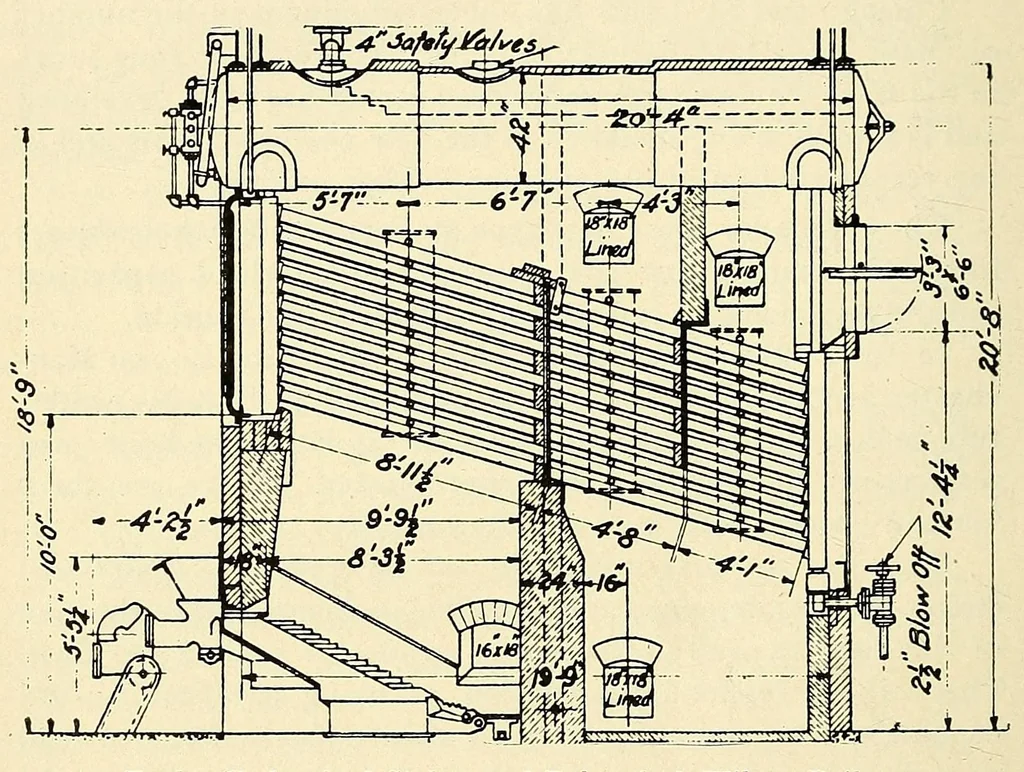

ction is new in this section. Over the grate is a fiat arch 7 ft., 0 in. long, 15 in. from the grate in front and 27 in. from grate in rear. The bridge-wall is run up vertically past the rear of the arch, then slants to rear of the first pass. The distance from end of arch and vertical face of… … Taylor Under-feed Stoker and Babcock & Wilcox Boiler. passes under the arch and ignition occurs, the volatile gases begin to distill off, flowing under the arch and passing to the heating surface without being mixed with the air that has entered the furnace through the rear of the grate. With the…
