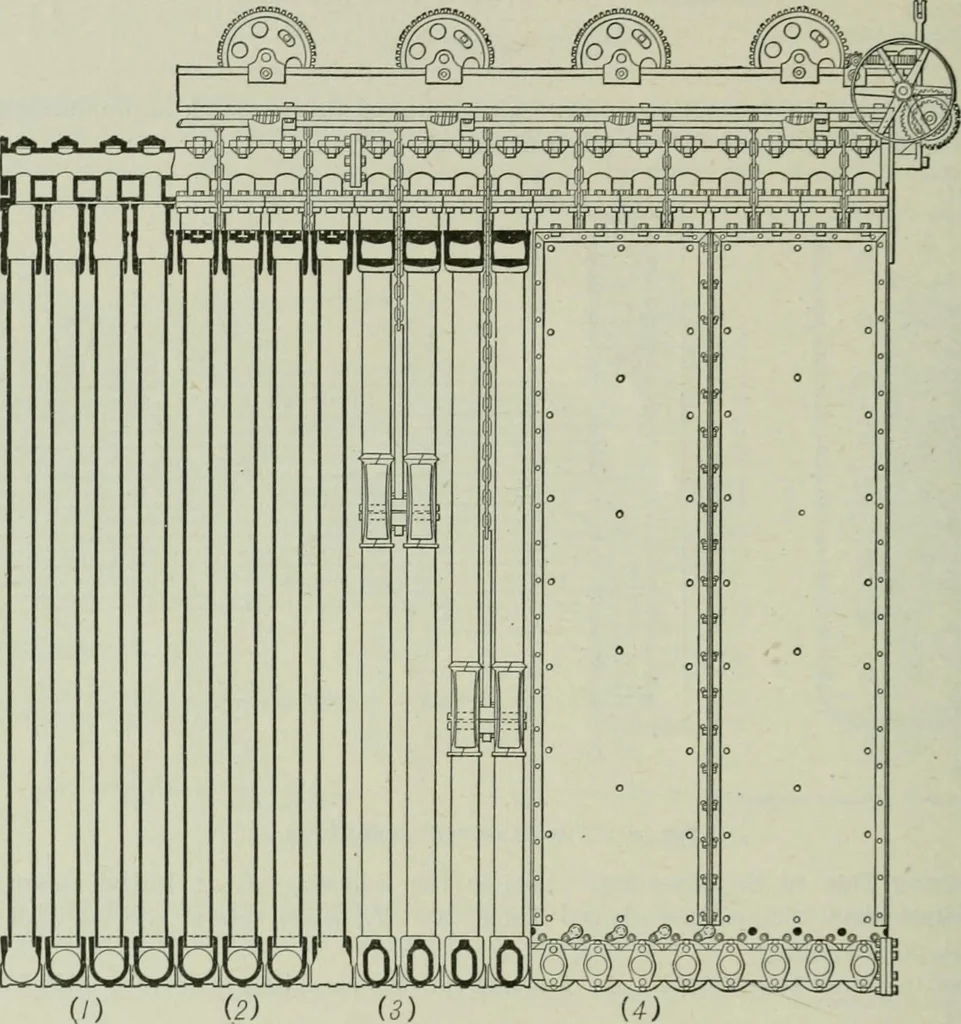

ION The feed water enters the economizer at the end farthest from the boiler and flows in theopposite direction to the gases (counter flow). Each tube is provided with a scraper, which isoperated from the outside to remove the accumulation of soot from the tubes in order that theheat-transmission… … Fig. 3. Green Fuel Economizer.Longitudinal Elevation and Section of Greens Economizer: (1) Section in Plane of Top Access BranchPipe; (2) Section through Pipes and Uand-llolo Lids; (3) Section between Pipes and (4) Front Elevationwith Sectional Covering in Place. The saving efiectod by the…
