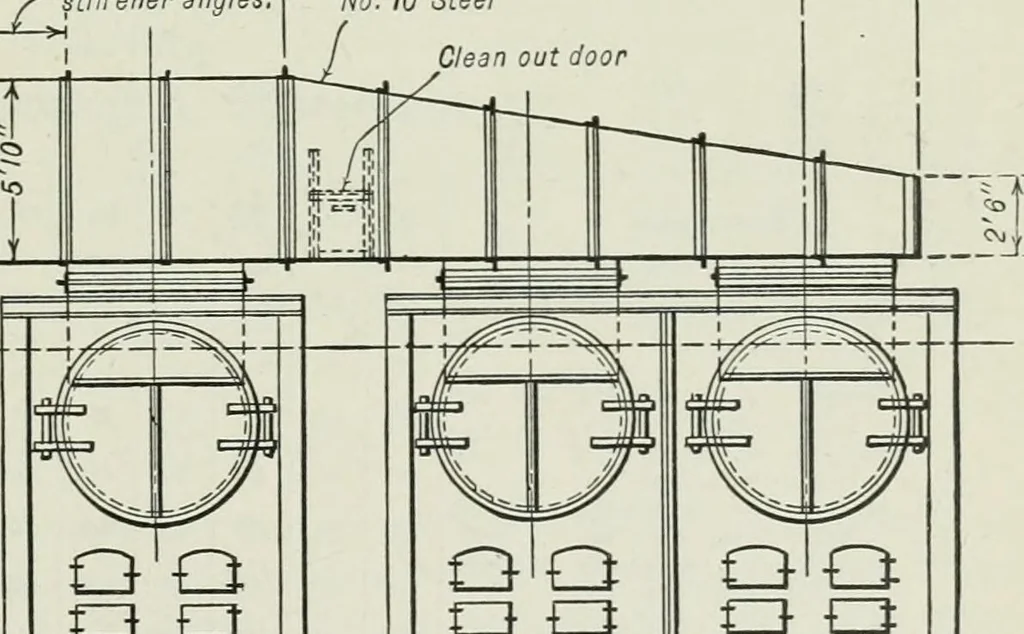

-202- m //, Approx. 37spaclng i //, I y stiffener angles. No. 10 Steel C3 £3 … \Mmh>?M/MMwmiM^M>iW^^^^ ELEVATIONFig. 4. Layout of Plant. inches water. The loss through the flue will be assumed as 0.15 inches per 100 ft. and 0.05 inches foreach turn; then hf 40 . , 0.15 X + 2 X 0.05 = 0.16 inches. The diameter of the stack from the diagram Fig. 1 is 53 + 5% or 54. The…
