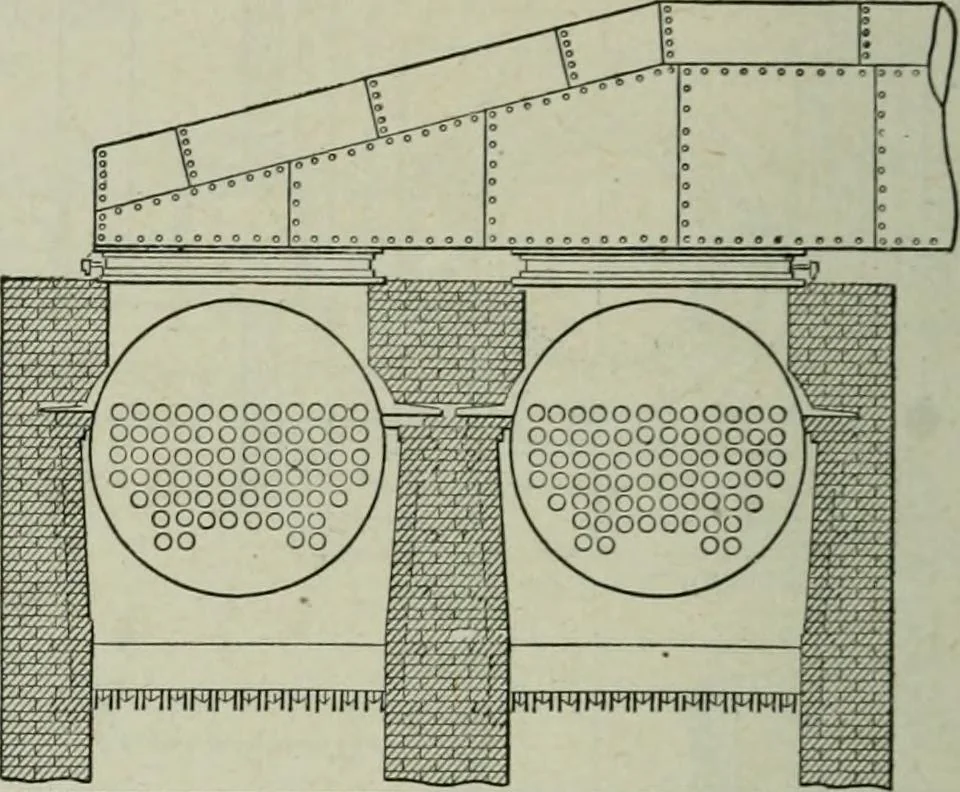

An illustration from Mechanical equipment of buildings; a reference book for engineers and architects, 1916, leaf 191 — i Fig. 5. Steel Breeching. TABLE 7 DIMENSIONS OF BREECHING (FIG. 4) Horsepower 50 60 70 75 80 90 95 110 125 135 155 170 190 Boiler Diameter, Inches 48 54 60 60 60 60 66 66 72 72 72 78 78 Ji Height of breeching at 1st S* boiler, cen. line, in £*? Height of breeching at 2d 18 18 20 20 20 20 24 24 •°J…
