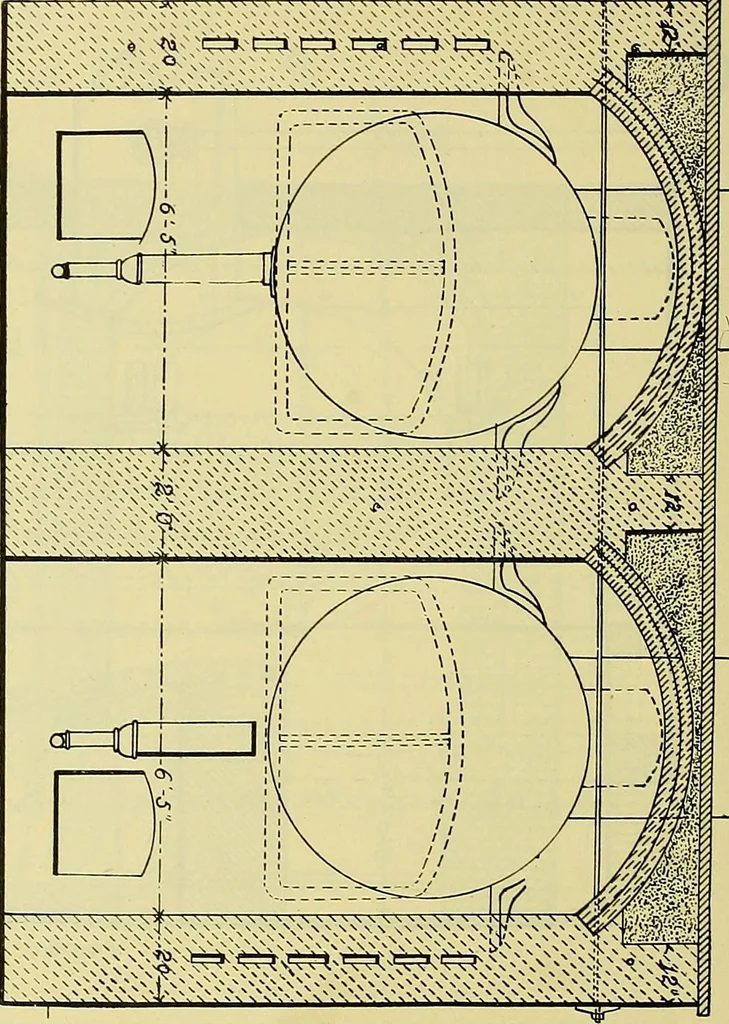

An illustration from Rogers' drawing and design; an educational treatise relating to linear drawing; machine design; working drawings; transmission methods; steam, electrical and metal working machines and parts; lathes; boiler and parts; instruments and their use; tables, etc, 1913, leaf 315
ire box boiler of a semi-portable character is shown in Figs. 509and 510, which exhibit a half end eleva-tion and half cross section through thefire box. The rectangular fire box whichconstitutes the furnace of this boiler isriveted to the front part of the cylindricalboiler. A space called the… … ROGERS DRAWING AND DESIGN. 345 Fio. 501. i^/ fy^.
