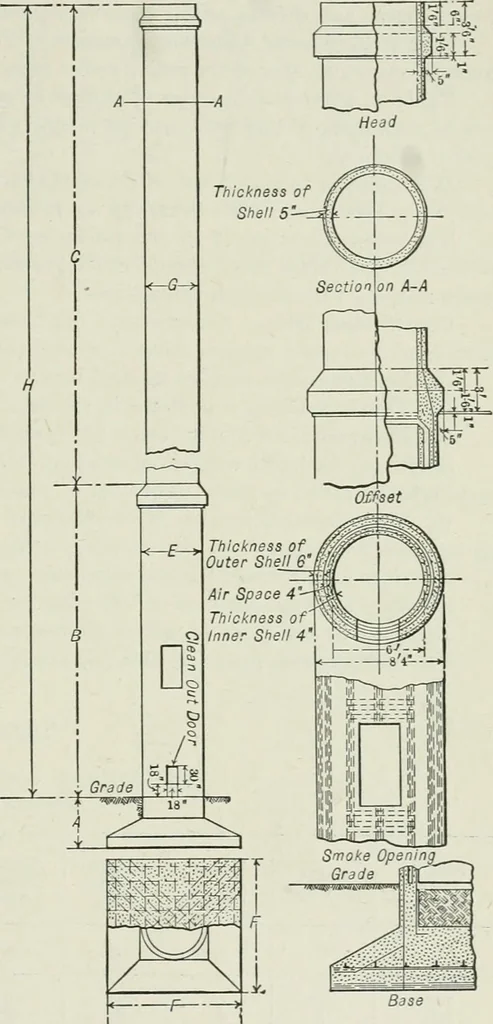

of a good grade of hard-burned brick,covered with a concrete cap, and separated from the concrete sheU by an insulating air space. Design and Guarantee. The foundation will be of such size that the resultant of forces willfall within the middle third, and the maximum compression from five and dead… … Fig 17. Reinforced Concrete ChimnetDimensions. (Tables 21 and 22.) 194 POWER PLANTS AND REFRIGERATION smoke opening the thickness of shell will be increased about 30 per cent on each side and extendingfive feet above and below, and additional reinforcement provided. The chimney will be designedto…
