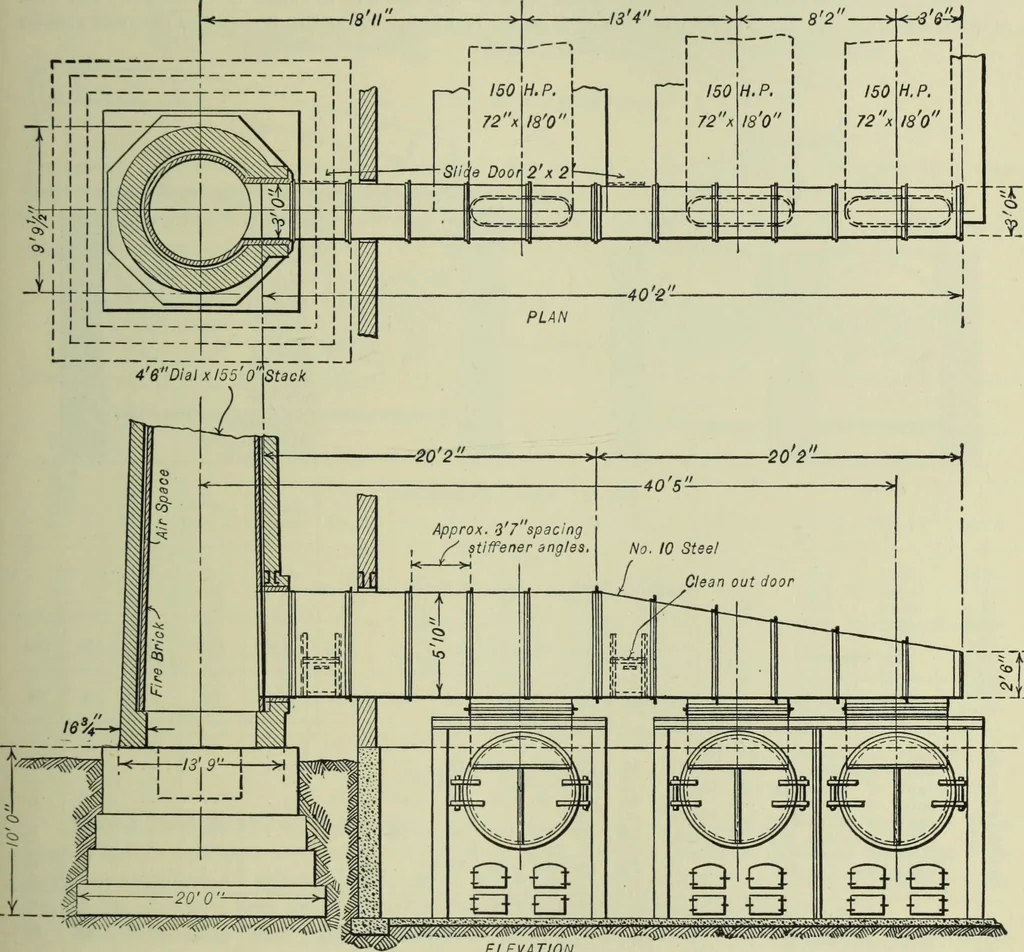

e and stack. The measured length of the flue is approximately 40 ft. The fuel assumed isPennsylvania bituminous and the total grate area is 90 sq. ft. If 5 lb. of coal per boiler horsepower isassumed for the fuel consumption, then 3 X 150 X 5 / 90 = 25 lb. per sq. ft. per hour is the rate… … ELEVATIONFig. 4. Layout of Plant. inches water. The loss through the flue will be assumed as 0.15 inches per 100 ft. and 0.05 inches foreach turn; then 40V = 0.15 X — + 2 X 0.05 = 0.16 inches. The diameter of the stack from the diagram Fig. 1 is 53 + 5% or 54. The loss of head in the stack cannot…
