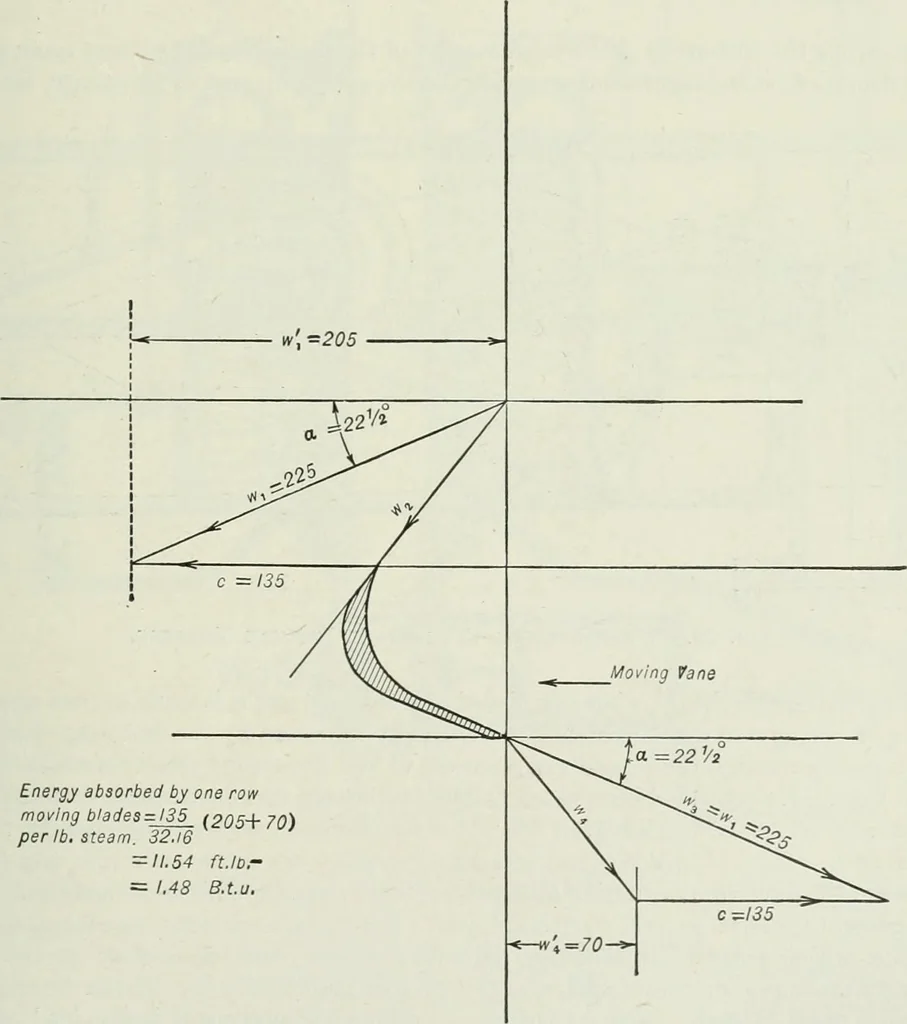

Impulse Action Stationary Fig. 27. Action of the Steam in the Parsons Turbine.c = Blade velocity at mean diameter, w = Steam speed due to expansion between A and B (absolute velocity). … Energy absorbed by one rowmoving blades = l35 (205+70)per lb. steam. 32.16 = 11.54 ft.lD.-= 1.48 B.t.u. Fig. 28. Velocity Diagram for Impulse-Reaction Turbine. 322 POWER PLANTS AND REFRIGERATION the guide vanes, or Wz= wu Constructing the velocity diagram, Fig. 28, we find wl = 205 andw\ = 70.…
