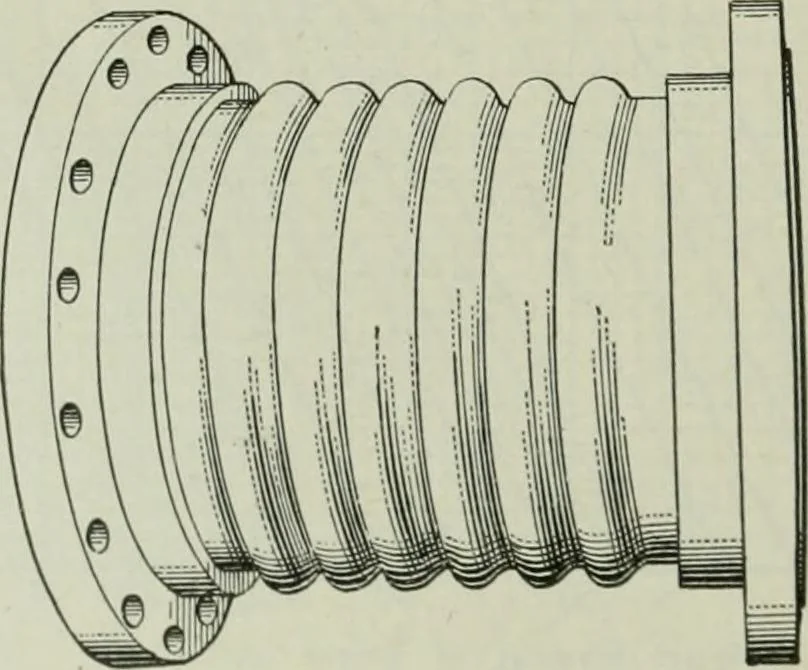

mines the number to be installed, or the lineal feet of pipe for which each joint may compensate. Joints of the single-slip type are made up to allow a maximum traverse as follows (expressed in inches): Pipe size 2 -23^-3 -3)2-4 -43-^-5-6-7-8-9-10-12 Traverse 2^-2.^-23.^-3 -3.^-3^-^-5-6-7-7- 7- 8… … Fig. .5. CoHRUG.vTED Copper Expansion .Joint. expansion joints are generally designed to allow a traverse of 4 on each sleeve for pipe sizesfrom 2 to 0, and 3}/^ on each sleeve pipe for sizes from 10 to 16. PIPE, FITTINGS, VALVES, COVERINGS AND ACCESSORIES 473 Slip joints are usually made with iron…
