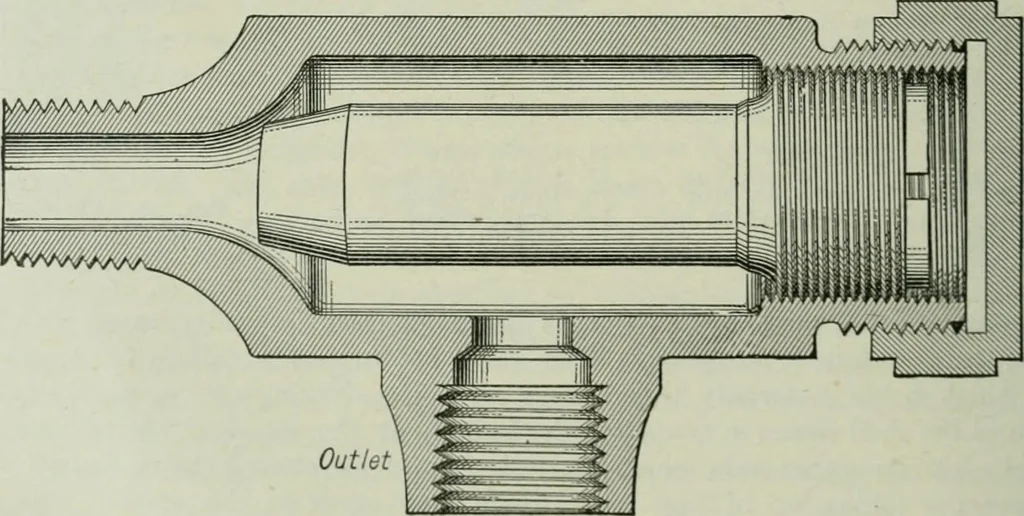

J 2»/,6 7 5^2>/i« Note.—Dimensions of offset globe same as offset comer valves,dimensions are same as given in table for offset comer valves. Regular comer valves have no offset. Other Jn/et … FiCJ. 32. Mo.N.\SH ILLG Tkap. PIPE, FITTINGS, VALVES, COVERINGS AND ACCESSORIES 505 This valve is made in sizes from .3^ to 2 either with or without union as shown in Fig.32, and should always be connected with bottom inlet and side outlet. Automatic Air Valves and Traps. The use of automatic air…
