Mechanical laboratory methods; the testing of instruments and machines in the mechanical engineering laboratory and in practice (1922)

Smallwood, Julian Chase · New York, D. Van Nostrand company · leaf 210

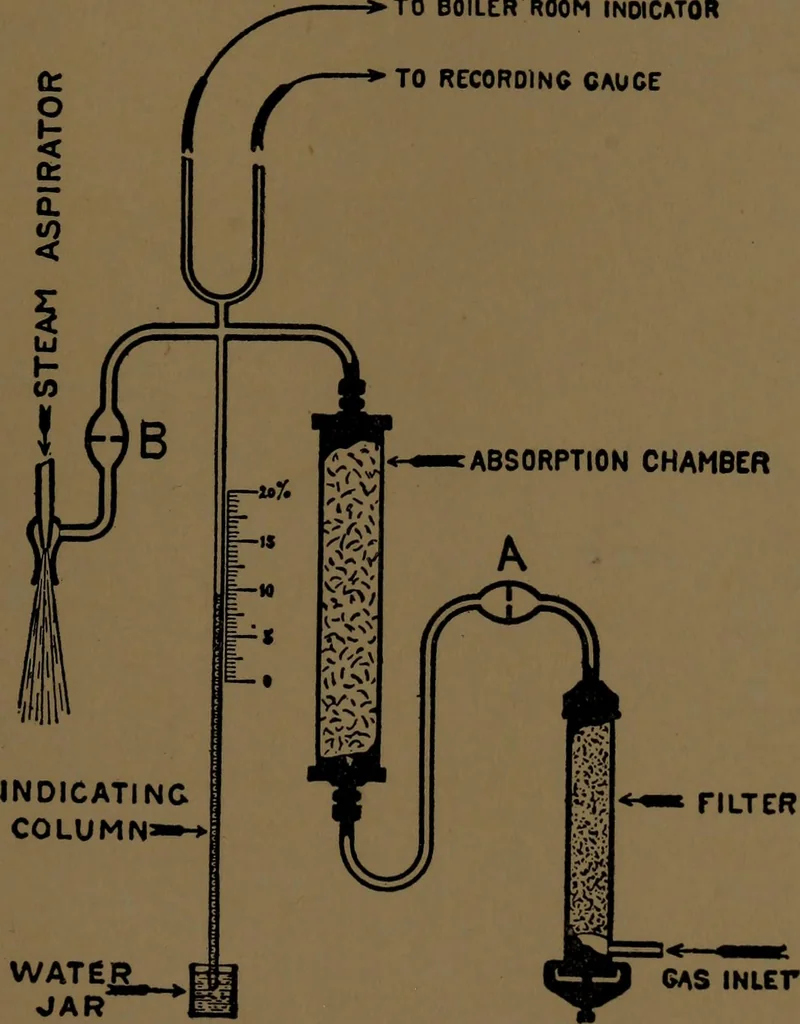

An illustration from Mechanical laboratory methods; the testing of instruments and machines in the mechanical engineering laboratory and in practice, 1922, leaf 210 — ent * For methods of installing and adjusting various types of C02 recorders,Bulletin 91, Bureau of Mines, on Instruments for Recording C02 in FlueGases, by Barkley and Flagg. 40 PRODUCTS OF COMBUSTION 191 it is absorbed between the orifices, reducing the volume of gas inthis space, and thereby… … ABSORPTION CHAMBER A FILTER Fig. 83.—Diagram of Uehling C02 Analyzer. The instrument is provided with a regulator for automaticallymaintaining a uniform flow. The Hays Automatic C02 Recorder is of the intermittent type.Referring to Fig. 84, gas is drawn from the furnace and through themachine by…
