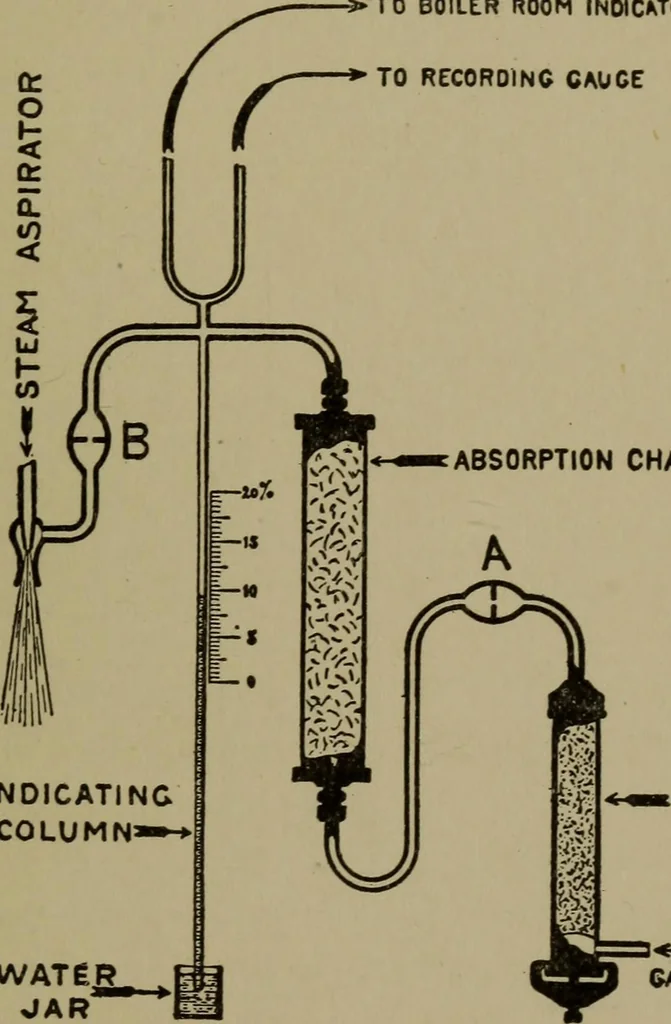

For methods of installing and adjusting various iy\)Qs of CO2 recorders,see Bulletin 91, Bureau of Mines, on Iftslrumcnts for Recording CO2 in FlueGases, by Barkley and Flagg. 40 PRODUCTS OF COMBUSTION 191 it is absorbed between the orifices, reducing the volume of gas inthis space, and thereby… … ABSORPTION CHAMBER A INDICATINGCOLUMN-*- FILTER WATER ^ ■ ■ ■ 6AS INLCr Fig. 83.—Diagram of Uehling CO2 Analyzer. The instrument is provided with a regulator for automaticallymaintaining a uniform flow. The Simmance-Abady CO2 recorder is typical of inter-mittent instruments for this purpose.…
