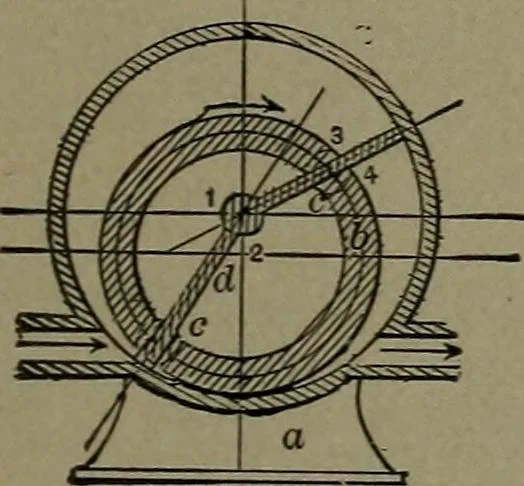

328. LAMB ROTARY ENGINE.— An annular cylinder with a fixed partition be-tvveen the inlet and outlet. The piston is ahollow cylinder with a longitudinal slot,which slides up and down the partition, theoutside of the cylinder wiping the inner surfaceof the shell. The centre of the traversing cylinder… … 329. COCHRAN ROTARY ENGINE.— The wing pistons d^ d are packed in the eccen-tric inner cylinder by a slotted rocking cylinderand revolve concentric with the outer cylinder orshell. The inner cylinder is pivoted eccentric tothe shell, making a tight joint at the bottom.
