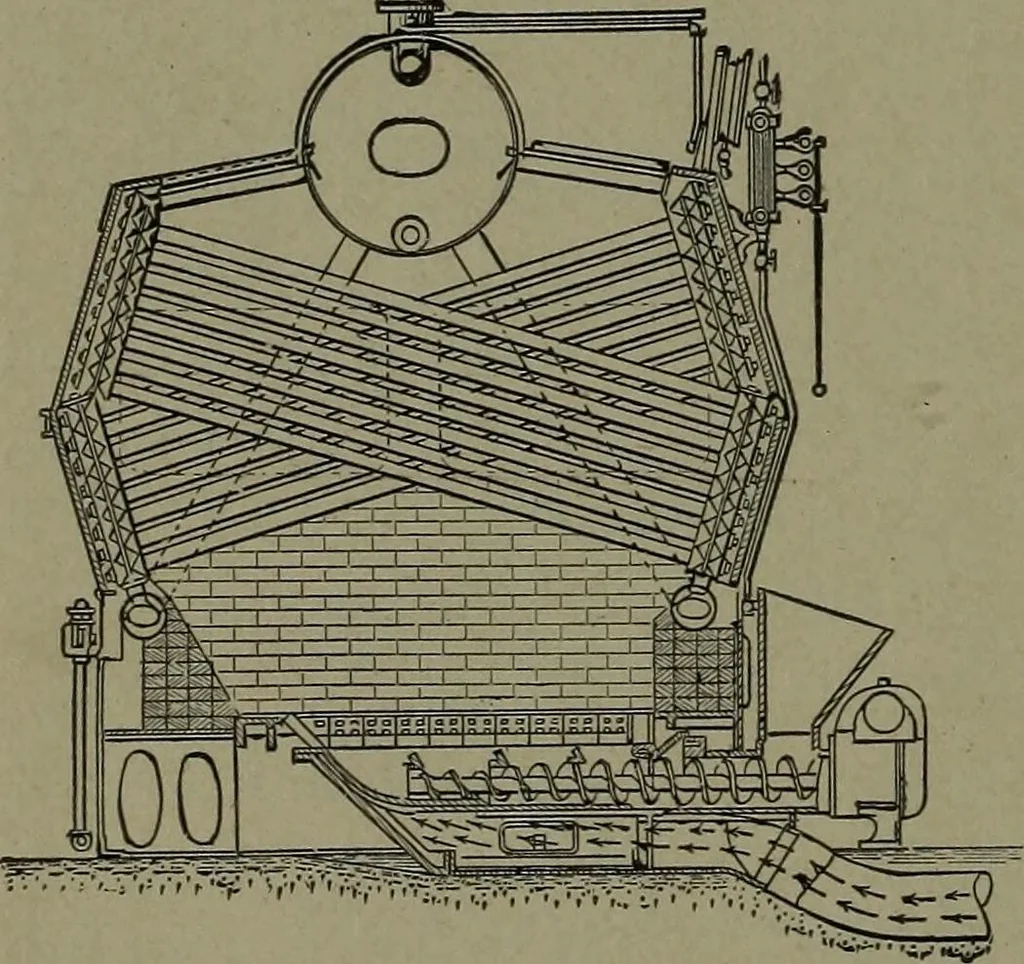

3710-. THE STERLINGBOILER.—The hot gases ofcombustion pass lengthwisethrough the three stacks oftubes guided by the fire brickpartitions. All the fire sur-face divided by 12 equals theboiler horse power. Tubesare cleaned by steam blowpipes. Circulating pipes out-side the setting. … 371A. THE WORTHING-TON WATER TUBEBOILER.—The water tubesections are between headersand cross each other in series;the lower ends of the diagonalsections are connected wnth across pipe for circulation fromthe steam drum. Has theAmerican stoker attached.
