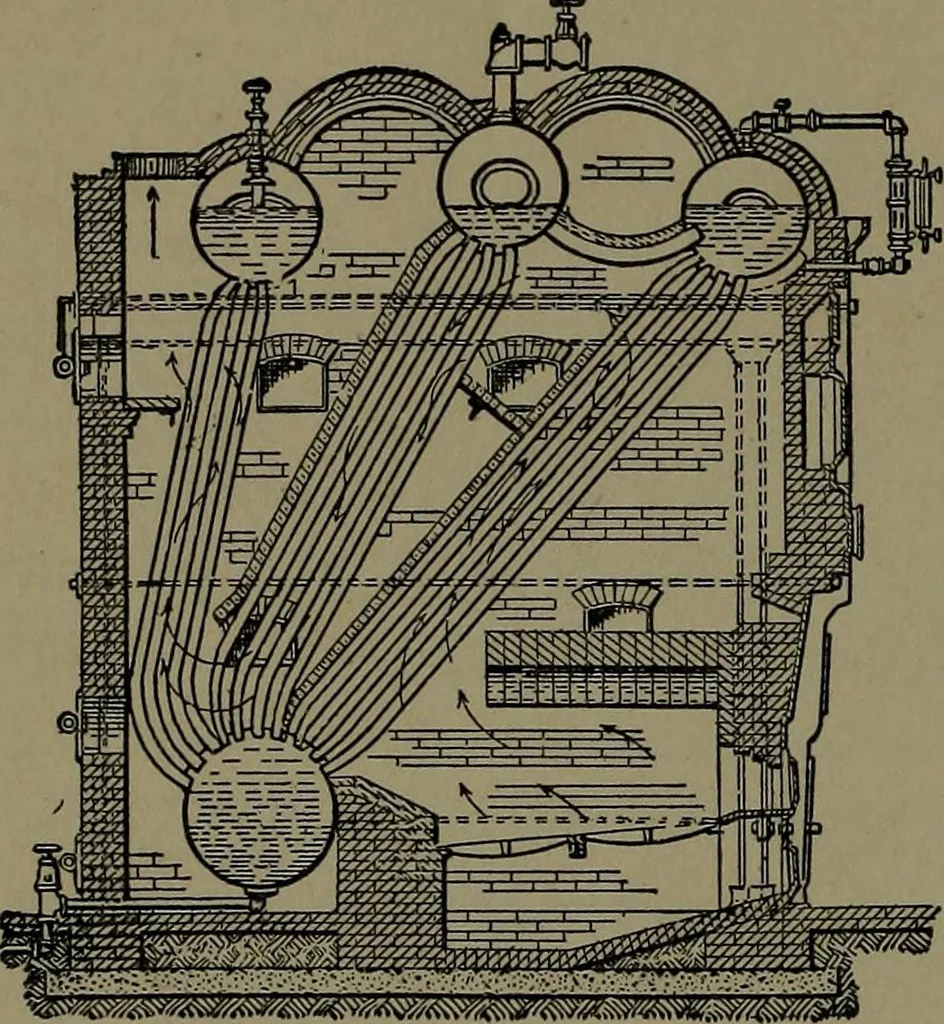

BRIDGEWALL I02 STEAM POWER. … 371^. THE STERLINGBOILER.—The hot gases ofcombustion pass lengthwisethrough the three stacks oftubes guided by the fire brickpartitions. All the fire sur-face divided by 12 equals theboiler horse power. Tubesare cleaned by steam blowpipes. Circulating pipes out-side the setting.
