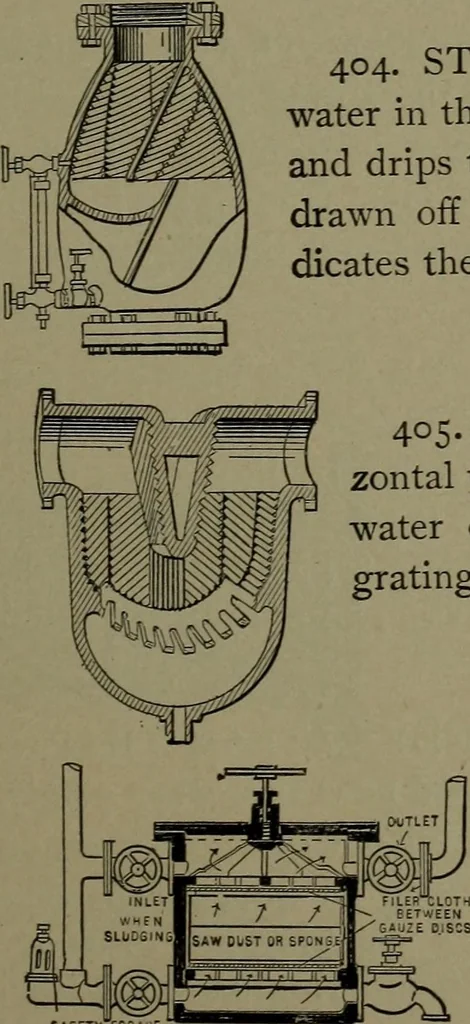

trainer and into the pocket, and isdrawn off through the valve. The glass gauge in-dicates the height of water in the pocket. 405. STEAM SEPARATOR, in line for hori-zontal pipes. The corrugated surface catches thewater of condensation, which falls through thegrating to the recess below. Austin… … 112 STEAM APPLIANCES. 407. RETURN STEAM TRAP,Blessing pattern.:i The trap is placedabove the water lineof the boiler. Theglobe is balancedon a weighted leverso that it rises whenempty and fallswhen filled withwater. The movement of the globe up and down trips valves thatalternately charge the globe…
