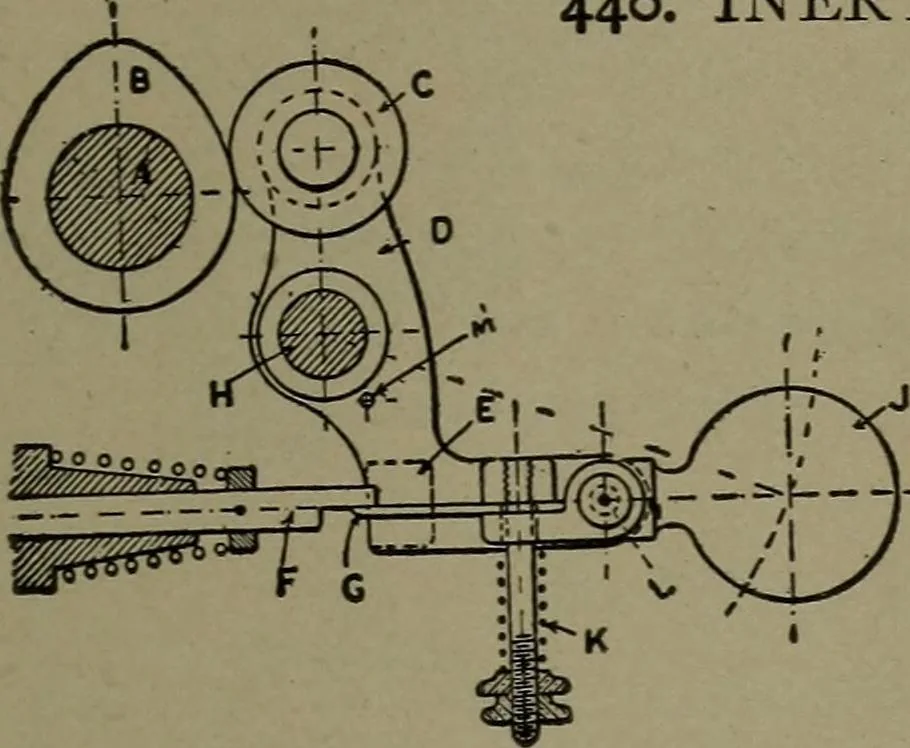

An illustration from Mechanical movements, powers and devices, 1911, leaf 134 — MOTIVE POWER. 123 … 440. INERTIA GOVERNOR for a gas engine.The ball, J, is the inertia pendu-lum. It is pivoted to the frame, D,at L. It swings on the pivot atH, by the rotation of the cam, B,against the roller, C. The spring,K, is for adjusting the amount ofthe motion of the ball and its at-tached pick blade, G, for…
