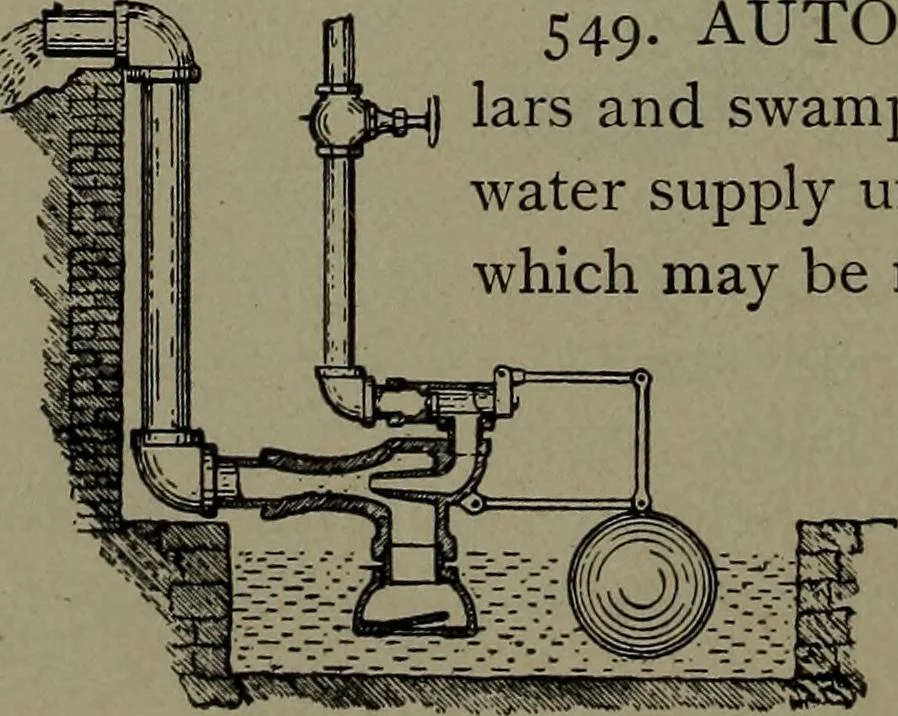

548. EJECTOR OR JET PUMP. A, the steam nozzle. B, suction pipe. C, the force pipe. A crude representation of the earlier forms of theejector. … 549. AUTOMATIC WATER EJECTOR.—Cel-lars and swamps may be drained, where there is awater supply under pressure, by the use of an ejectorwhich may be made automatic by a float acting uponthe valve in the pressure pipe. HYDRAULIC POWER AND DEVICES. 149
