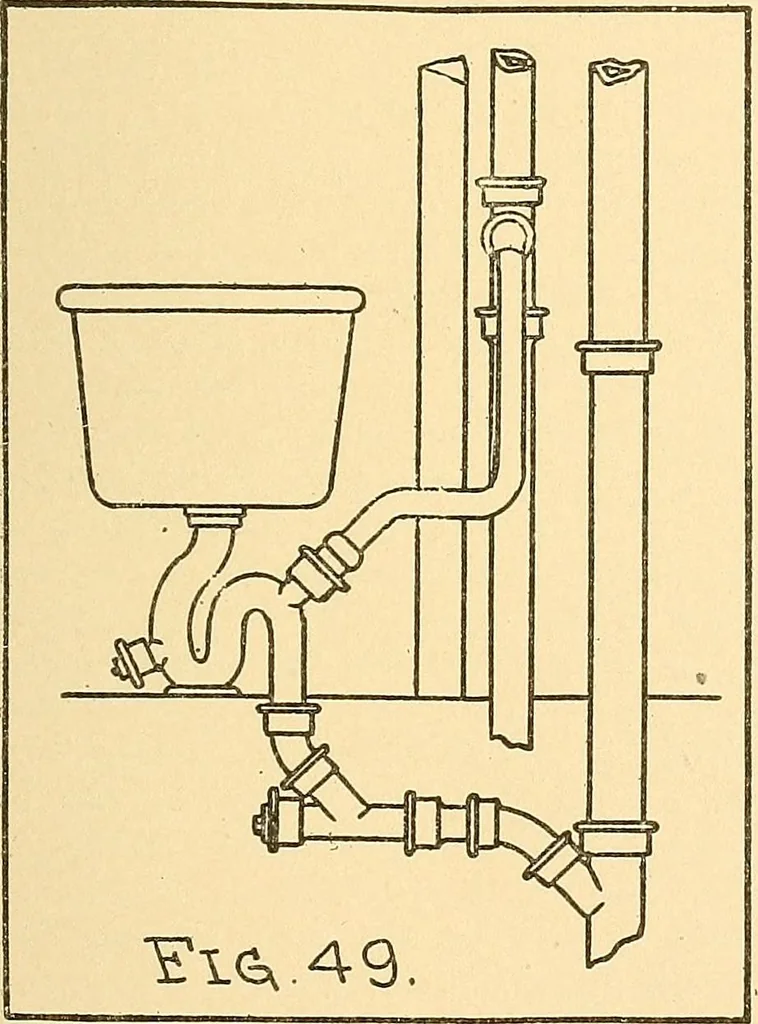

E have previously shown theproper forms for construct-ing some of the commonfixtures. To these add inFigs. 48, 49, and 50, the urinal, slophopper, and refrigerator. In these, besidesshowing the fixture itself, we have shownits connections also. We think this a goodidea, for the reason that some of… … CHAPTER IX positions, as seen from the side, and fromthe front. The front view of this fixture,will be found rather difficult to draw, andto make it as easy as possible, we havedotted the centers of the principal curvesused in constructing it. By placing thecompasses on the different centers,…
