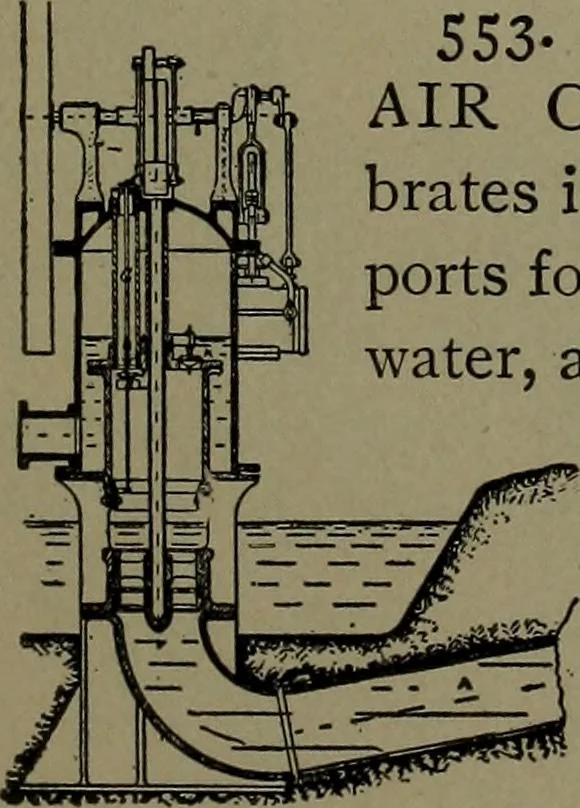

552. HYDRAULIC RAM.^A, Drivingpipe; V, impact valve; C, valve-bonnetcage and spindle; W, force valve; F, out-let to force pipe; D, air chamber; E, snift-ing hole, sometimes furnished with a smallball valve which allows air to draw in ateach rebound of the drive-water column, andthus to keep the air… … 553. PEARSALLS HYDRAULIC RAM ANDAIR COMPRESSER.—A hollow or open piston vi-brates in a cylinder, perforated all around with escapeports for egress of water. An air chamber receives thewater, and the air which is drawn in through the ports,which becomes compressed. A small air motordrives a crank…
