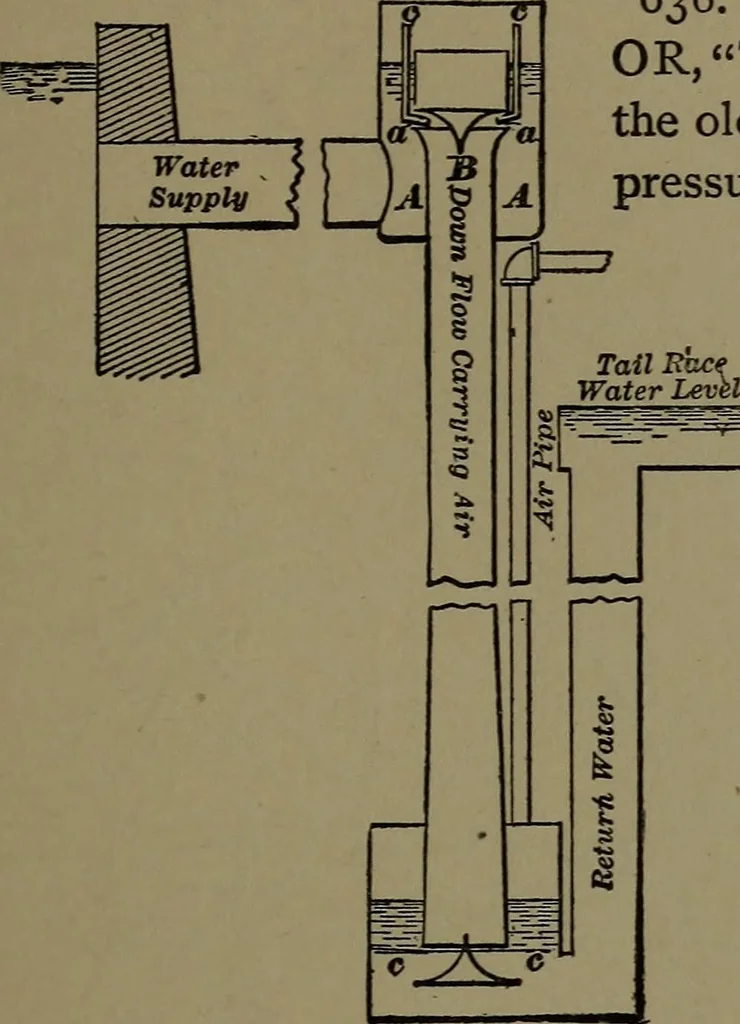

635. AIR COMPRES-SOR.— Elevation of duplextype, showing connectingrod and yoke frame. - Clayton model. AIR POWER APPLIANCES. 171 … 636. HYDRAULIC AIR COMPRESS-OR, Taylor system. The principles ofthe old Trompe blower extended for highpressures. A number of air tubes, c, c,tenninate at the conical entranceof the down-flow pipe, B, at a, a.A supply of water to the cham-Ip^^s^^^ ber A, A, and its flow down thepipe, draws air…
