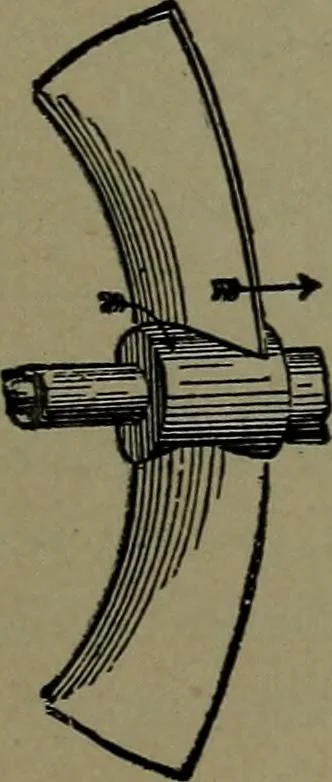

822. OUTWARD THRUST PROPELLERWHEEL.—The blades pitch fonvard to throw thewater outward as well as backward, to increasethe thrust or power of the wheel. 823. SCREW PROPELLER. Four blades. Or-dinary form for heavy draft tugs and tow-boats. 824. SCREW PROPELLER, Griffithmodel. The inclination of the… … 825. SCREW PROPELLER, Hodgsons model.The blades are curved backward to prevent the cen.trifugal direction of the water when passing the blades.Claims on fore-and-aft direction of blades by inventors,are not in harmony with the best practice in propelleidesign.
Mechanical movements
