Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 239

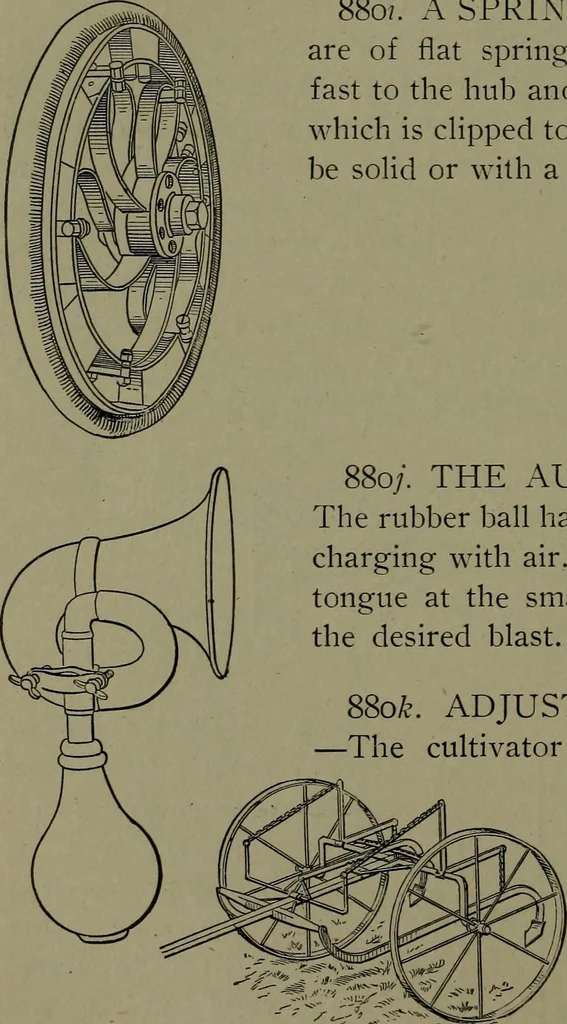

880/L STREET CLEAN-MACHINE.—A re-;■ brush A, driven bybelt from the wagon wheel, throws the dirt^ upon the ele- vator B, anddistributes itin the box D.E, the distributer; F, water tank to supply the sprinkler G. … 880/. A SPRING WHEEL.—The spokesare of flat spring steel, curved and madefast to the hub and to a secondary steel rim,which is clipped to the outer rim, which maybe solid or with a rubber tire. 880;. THE AUTOI^IOBILE HORN.—The rubber ball has a valve at the bottom forcharging with air. A whistle or…
Mechanical movements
