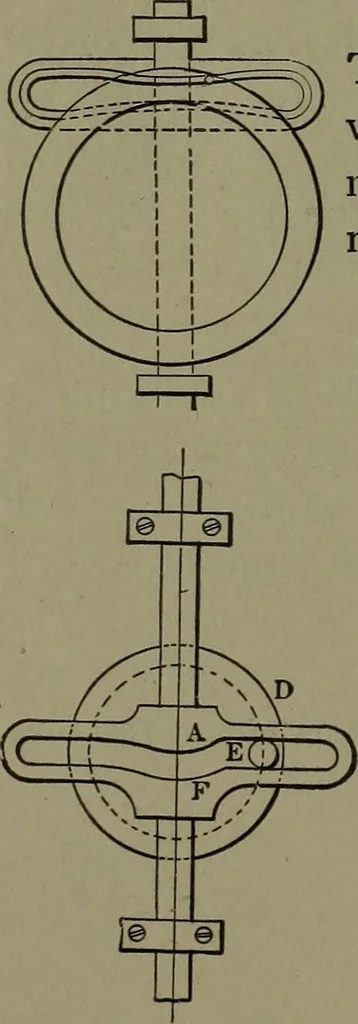

1037. UNIFORM RECIPROCATING MO-TION from the circular motion of a crank or discwrist pin. The endless groove in the cross head ismade to conform in shape to the varying rectilinearmotion of the wrist pin. 1038. NEEDLE-BAR SLOT CAM, for sew-ing-machines. The depression in the pin slotgives the…
