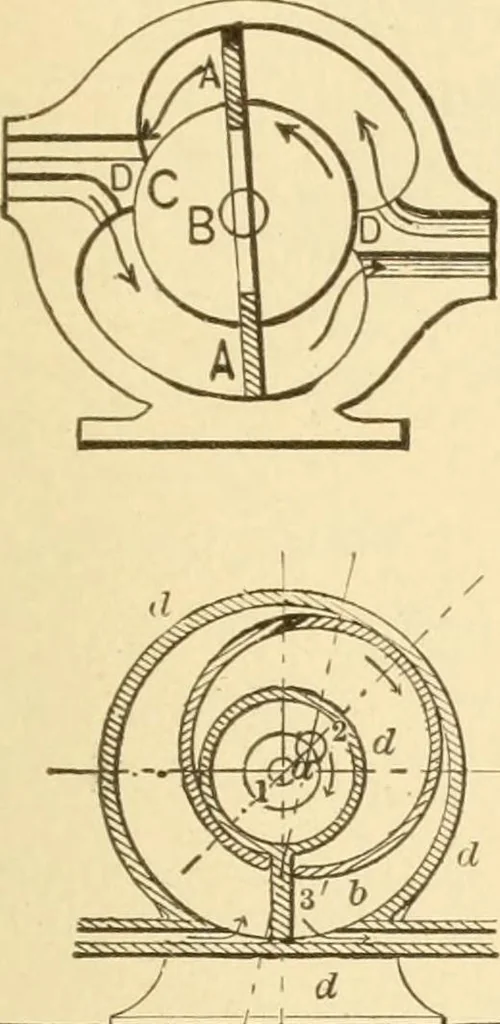

ne the shaft and pistonbarrel are concentric, while the walls of the steamchambers are ovoid. A difficult form of con-struction. 328. LAMB ROTARY ENGINE.— An annular cylinder with a fixed partition be-tween the inlet and outlet. The piston is ahollow cylinder with a longitudinal slot,which slides… … WmT a \ 329. « COCHRAN ROTARY ENGINE.— The wing pistons d, d are packed in the eccen-tric inner cylinder by a slotted rocking cylinderand revolve concentric with the outer cylinder orshell. The inner cylinder is pivoted eccentric tothe shell, making a tight joint at the bottom.
