Mechanical movements, powers and devices (1911)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 275

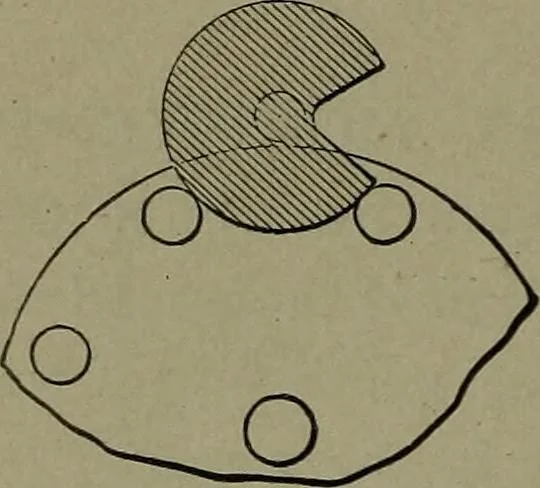

An illustration from Mechanical movements, powers and devices, 1911, leaf 275 — 1057. INTERMITTENT MOTION of a seg-mental-toothed wheel by the revolution of a seg-mental barrel or ring. … 1058. INTERMITTENT MOTION of apin-tooth wheel by the revolution of an in-dented tooth on a pinioji. 1059. INTERMITTENT MOTION of a toothedwheel by the revolution of a pinion with a singlerecessed tooth.

Mechanical movements
