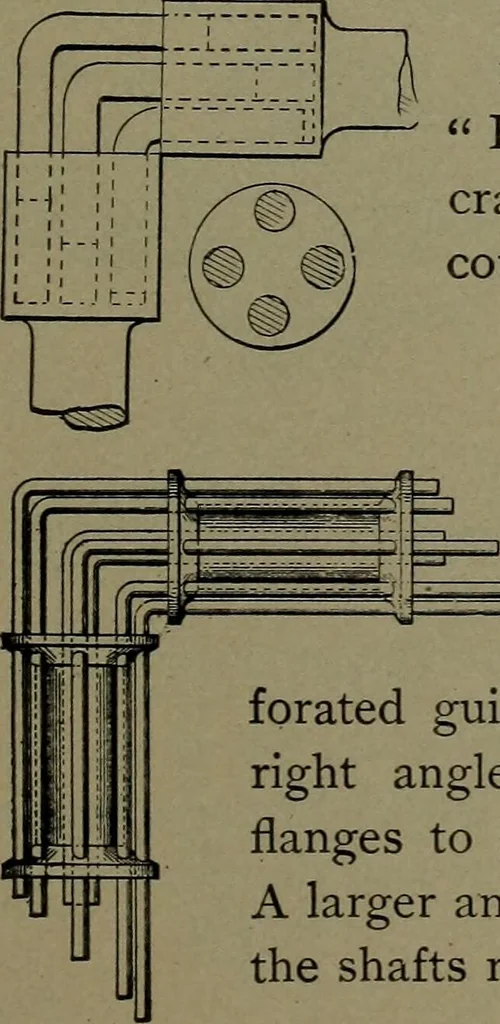

l is alike, and in itselfa universal joint for 45° . Both to-gether equal to 90°. 1297. BALL SOCKET UNIVER-SAL JOINT.—A ball with groovesaround it at right angles and bearingin the spherically recessed ends of theshafts. Straps fitted in the grooves,and screwed in slots in the shaft, holdthe ball… … 1299. RIGHT-ANGLE SHAFT COUPLING, Hobson and other patents. Right-anglecrank pins revolve and slide in holes in the shaftcouplings. 1300. RIGHT-ANGLE SHAFT COUP- .;!^^^ LING, Hobson patent.—A number ofright-angle steel rods move freely in per-forated guide flanges on the ends of shafts that run…
