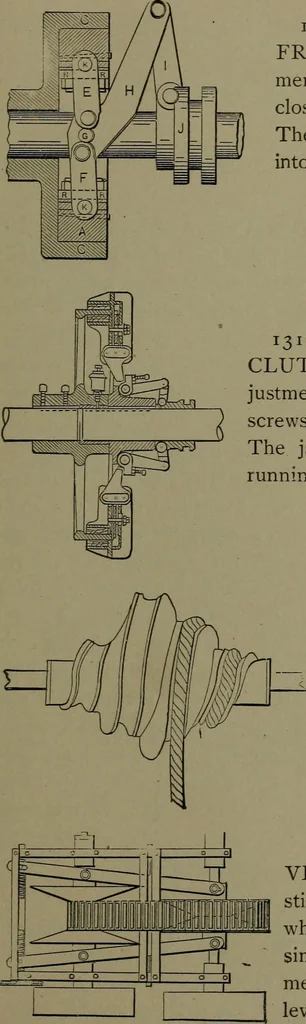

the shaft, witha friction clutch fixed in position by a leverextension not shown. Clutch is tightenedby the screw handle/, when the gear e c xotates to drive gear h. The pinions arepivoted in the plane of gear e c. 1317. SPRING FRICTIONCLUTCH.—The lever handle,eccentric, and link are held… … 1318. DOUBLE TOGGLE-JOINTFRICTION CLUTCH. —The move-ment of the grooved sleeve J opens orcloses the grip A, upon the rim wheel C.The lever H throws the toggle links E, Finto line for the grip. 1319. ADJUSTABLE FRICTIONCLUTCH, with double-grip bearings. Ad-justment tightness is made by locked…
