Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 283

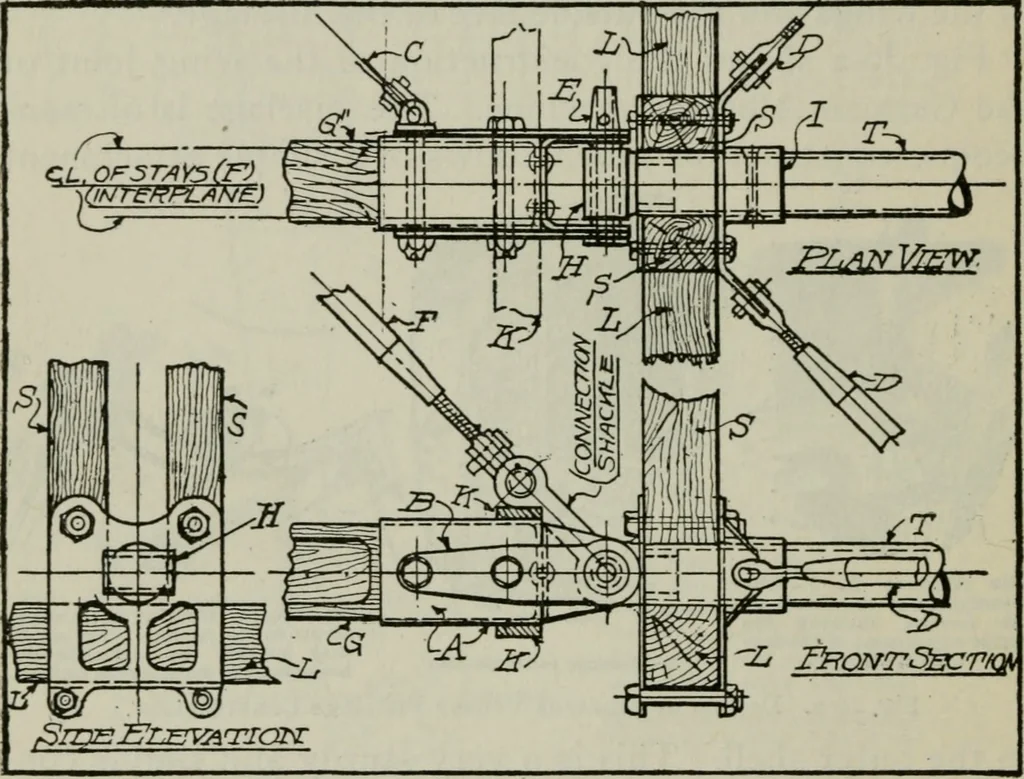

due to the pull of the interplane stay.The attachment in the L. W. F. insures against any eccen- 272 FUSELAGE DETAILS tricity in the stay attachment, and at the same time makesthe assembly and dismounting a very simple matter. Chassis Member Attachment. The attachment of thechassis struts generally… … Fig. n. Wing Connection to Fuselage. difficult. The chassis must be pin connected as in thecase of the wing joint so that the chassis members can beeasily and quickly removed. A detail of a chassis to bodyconnection is shown by Fig. 39. In this figure (L) is thelower longeron, (S) is the vertical…
