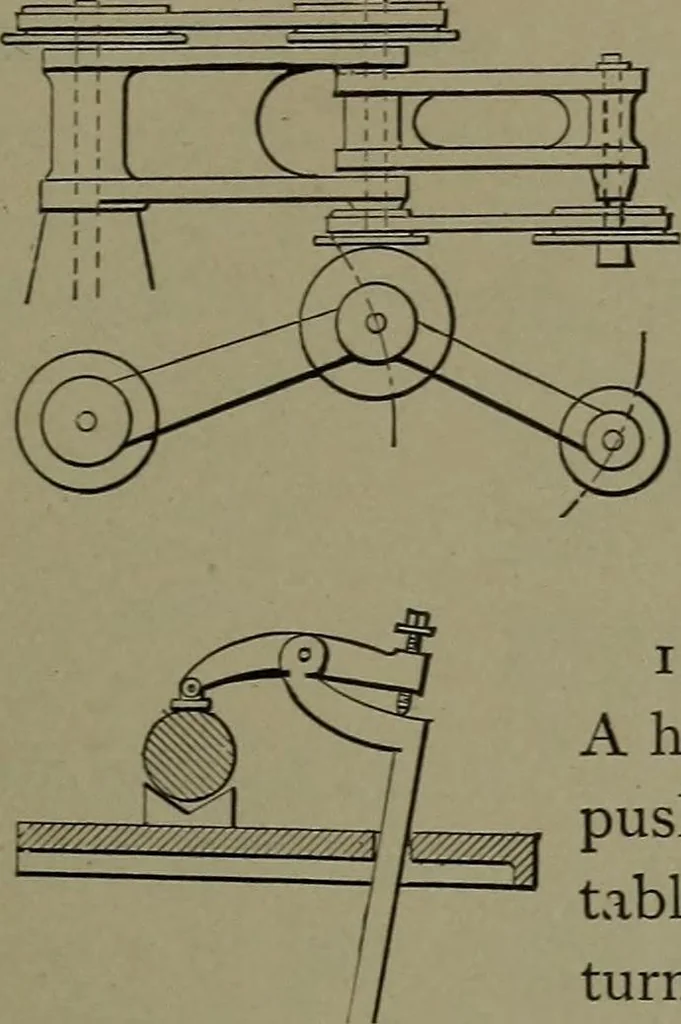

1325. BELT HOLDER, Wellingtonmodel. Does away with a loose pulley. Thebelt is guided on to a set of rollers in a fixedframe at the side of the driving pulley. Savestime and avoids danger in putting on belts. MILL AND FACTORY APPLIANCES. 325 Y^J^C )fy ^3^^- JOINTED RADIAL ARM, for^ ■ • • drilling… … other similar machines. Elevation. 1327. Plan, sho\Ying joints and action. 1328. DRILLING MACHINE CLAMP.—A handy tool about a drill press. The shank ispushed loosely through a hole in the drill-presstable until the lever bears on the work, when aturn on the set-screw makes a tight grip.
