Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 278

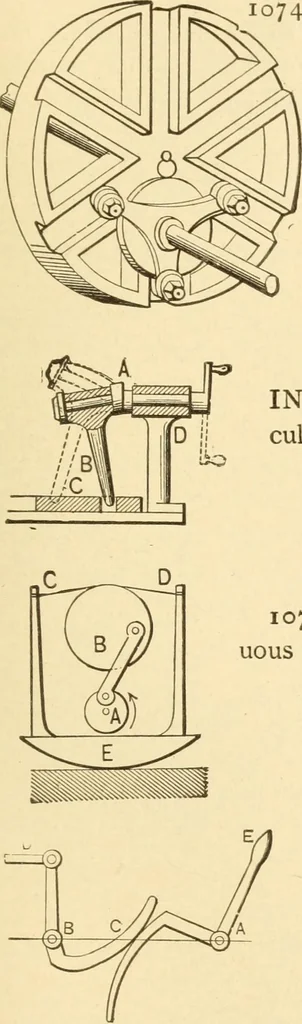

1072. RECIPROCATING RECTILINEARMOTION by the alternate opening and closingof half nuts on a right and left screw. Nuts andarms are attached to a shaft that is thrown overby a dog on a spooling-frame shaft, locking the right- or left-threaded nut alternately. 1073. RECTILINEAR MOTION by aright- and… … 1074. SIX RADIAL GROOVED TRAMMEL and triangular shaft arms, driving or beingdriven by a shaft out of line. The frictionrollers give freedom of motion to either gear. 1075. RECTILINEAR RECIPROCAT-ING MOTION of a bar, from continuous cir-cular motion of a bent shaft. 1076. ROCKING MOTION, from a…
Mechanical movements
