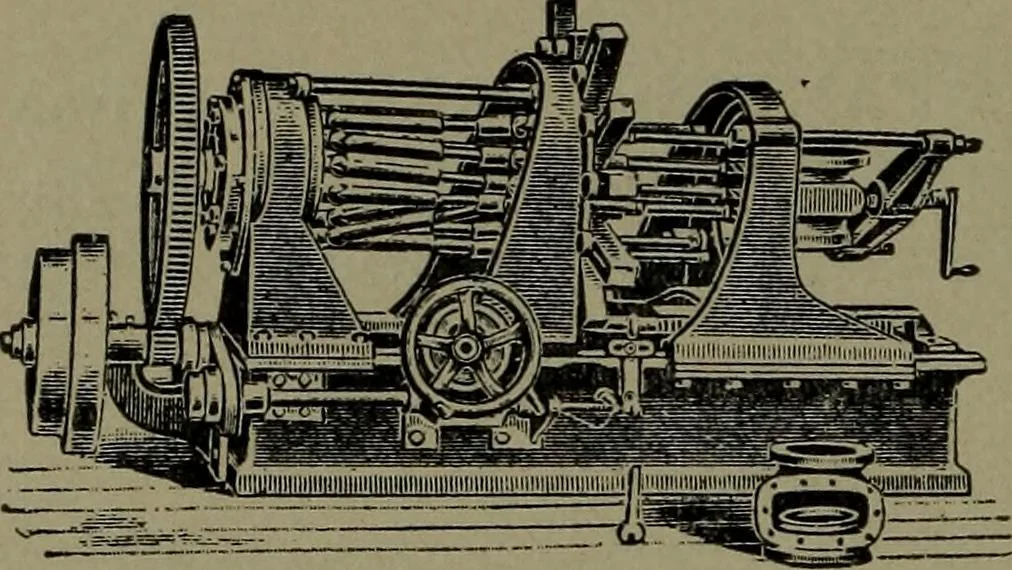

1358. PORTABLE DRILL, rope trans,mission and flexible shaft. One continuousrope over driving pulley, two double sheavesanchored, and flexible shaft pulley; allow-ing the driving sheave of the flexible shaftto be anchored in any position, and fortightening the driving rope. 1359. MULTIPLE DRILLING… … 1360. MULTIPLE DRIL-LING MACHINE.—For drill-ing a number of holes in flangesat one time. The drill chucksare adjusted in a spider for anysize circle and connected to thedriving head with jointed rods.
Mechanical movements
