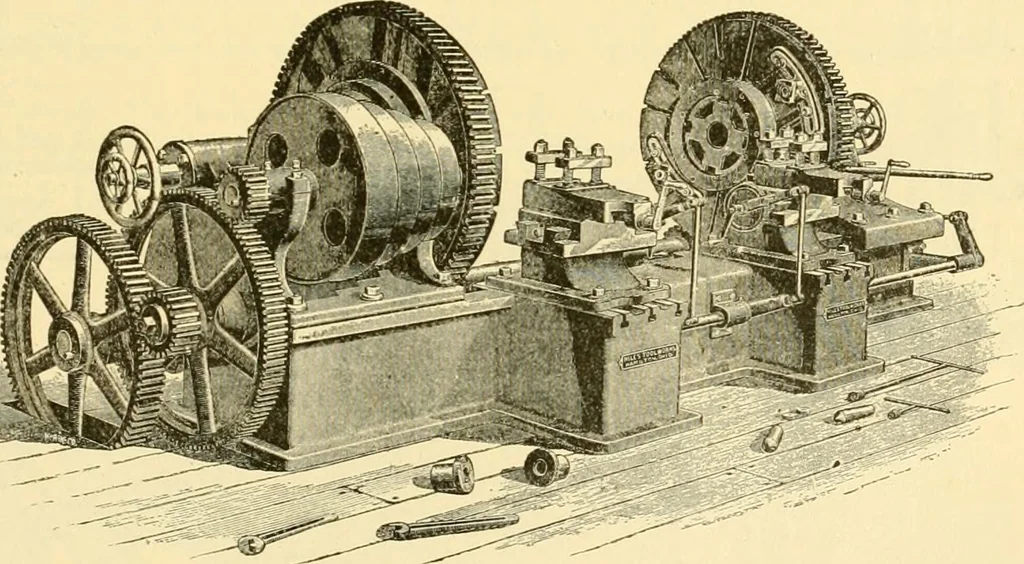

ads of the bolts used to secure the tire to the wheel-center. These drivers are adjustable both lengthwise and radially to suit any wheel. Eachhead is arranged with a sliding spindle, with centers, which are capped to prevent end-motionof the axle when used for turning truck-wheels with inside… … Fig. 7.—The Niles car-wheel lathe. have swivel-jaws, they will accommodate themselves to the work as it is put into the lathe.The feeds are operated from the driving-shaft by means of a rock-shaft placed in front of themachine, and work through the means of a racthet-lever in the same manner as on…
