Mechanical movements, powers and devices (1911)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 342

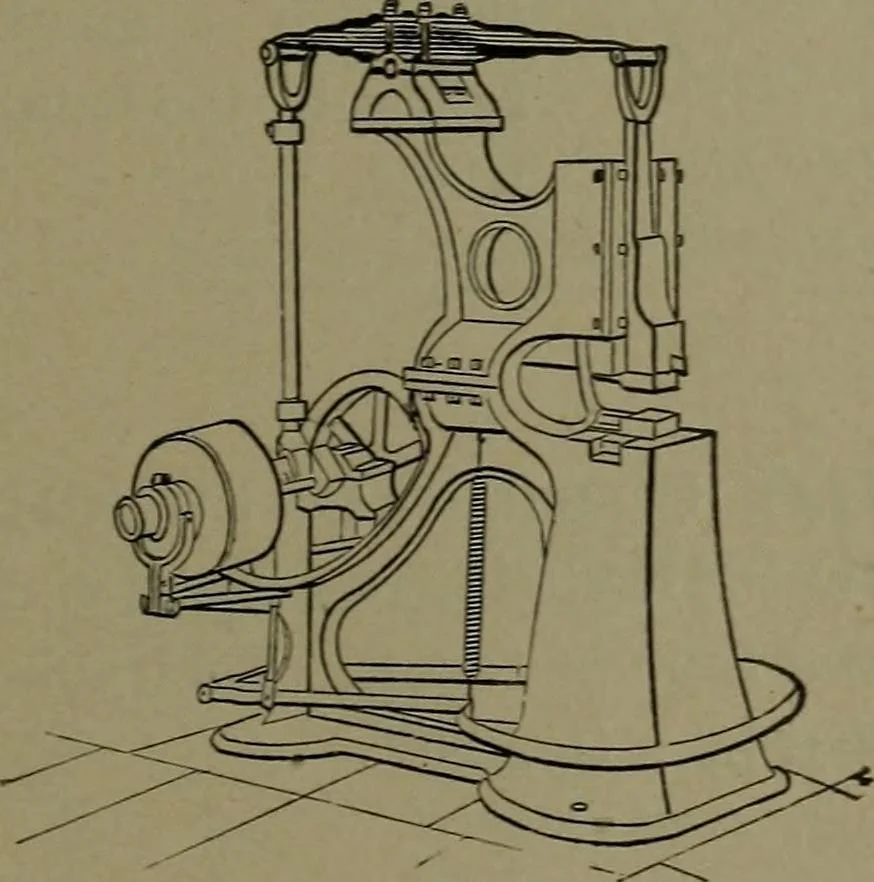

An illustration from Mechanical movements, powers and devices, 1911, leaf 342 — 1366. BEAM TRIP HAMMER.— The beam is vibrated by an ec-centric on the driving shaft. Thecushions intensify and regulate theblow of the hammer. The treadleoperates the brake and controls theblow of the hammer. Bradleypattern. … 1367. SPRING HAMMER.—Theheight of the hammer, to suit the sizeof the forging, is adjusted by chang-ing the length of the connecting rod.The treadle controls the stroke byoperating a friction gear on the driv-ing pulley.
