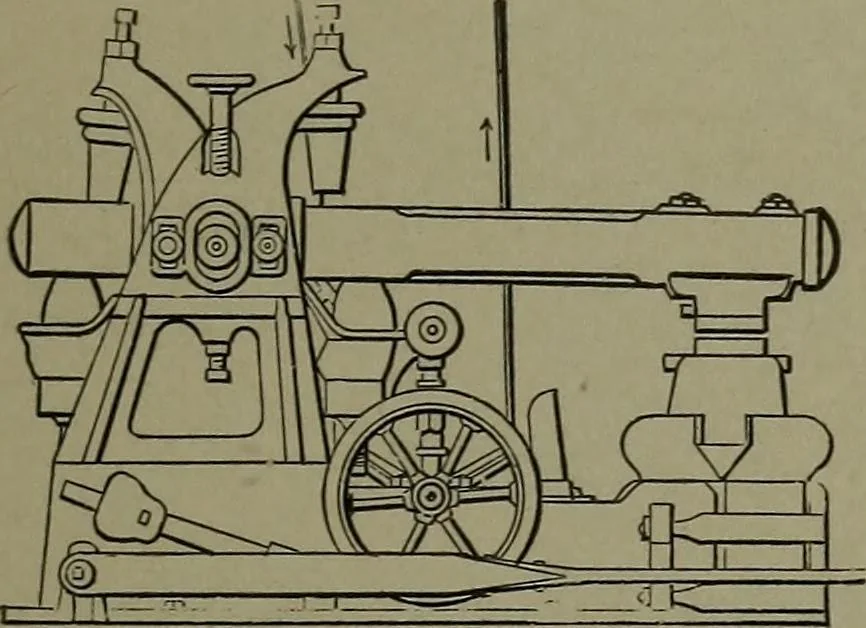

1365. FRICTION DROP HAMMER.—The ham-mer head is attached to a hardwood board running be-tween friction rolls. One of the rolls has an eccentricsleeve shaft with a lever and lanyard to throw the rollout of contact with the board at the proper time forlong or short drop. The other roll and shaft… … 1366. BEAM TRIP HAMMER. —The beam is vibrated by an ec-centric on the driving shaft. Thecushions intensify and regulate theblow of the hammer. The treadleoperates the brake and controls theblow of the hammer. Bradleypattern.
