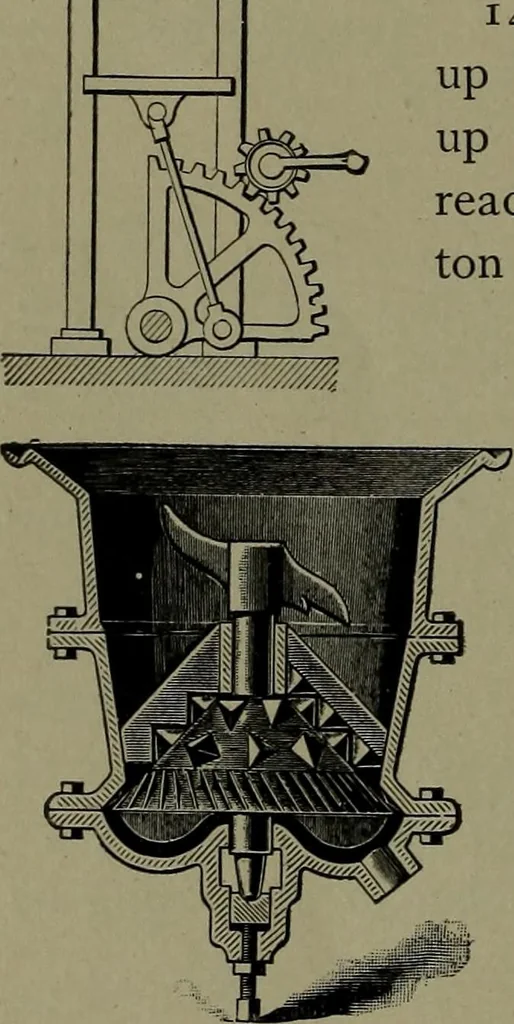

W—^ … 1434. TOGGLE-BAR PRESS.—The rota-tion of the disc a by the lever handle bringsthe toggle bars to a vertical position, with in-creasing pressure upon the platen. The tog-gle bars have spherical ends fitted to sphericalcups in the top and bottom discs. 1435. SECTOR PRESS.—The sector is rolledup by…
