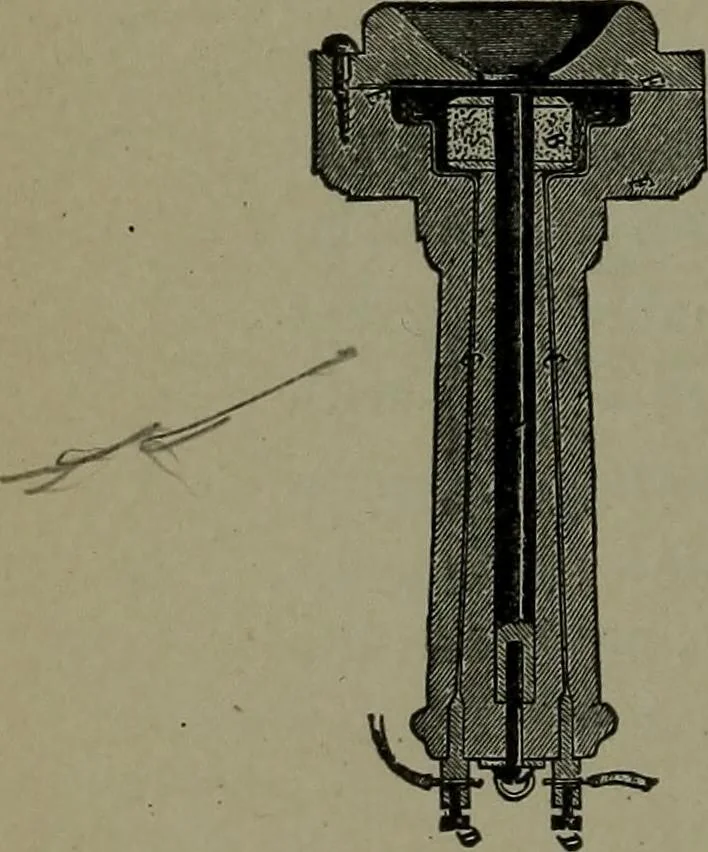

735. TELEPHONE TRANS-M I T T E R . — A, A, thin iron-diaphragm ; B, india rubber in con-tact with diaphragm and the ivorydisc, C ; D, platinum foil betweentheivorydisc,C,and the carbon disc,E; G, disc and screw for adjust-ment of carbon contact; H, ad-justing screw for diaphragm con-tact. … 736. TELEPHONE RECEIVER.—A central magnet, with a coil of fine insulated wire around theend, next the vibrating plate or diaphragm. Thevariations in the electrical current produce varia-tions in the intensity of the magnet, which set upvibrations of sound in the iron diaphragm.
