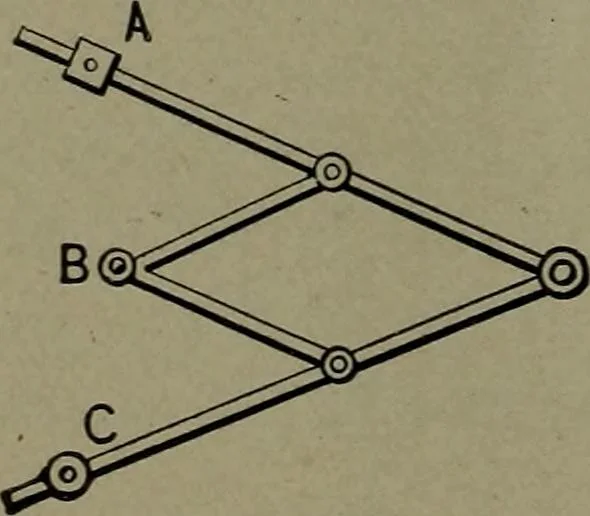

i^-A^-^ … 1528. PANTOGRAPH.—For perfect pro-portions the points A, B, C must always be inline. With the point B fixed, the pencil at Awill produce an exact copy of tracing frompoint C. By changing places lEor the fixedpoint a double or half-size tracing may be made. 1529. LAZY-TONGS PANTOGRAPH, for reducing…
Mechanical movements
