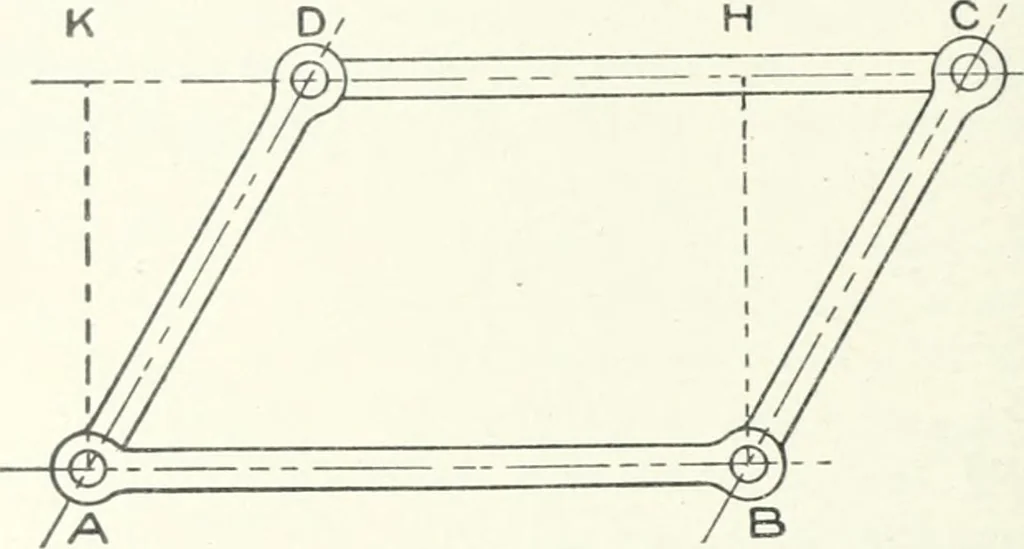

f the cranks are alwaysequal. An example of a linkage of this kind is found in the par-allel rod connecting the drivers of a locomotive, as shown in Fig.47. The axles of the drivers form the fixed centers A and B, the 351 44 MECHANISM. frame of the locomotive forms the tixed link AB, the drivers… … Fiff. 46. arc of a circle whose center is B and radius BC, If in place ofBC the fixed link is formed as shown in Fig. 48, being providedwith a slot whose radius is BC and center is B, the pin C on the endof the connecting rod will have exactly the same motion that itwould if guided by the crank BC.…
