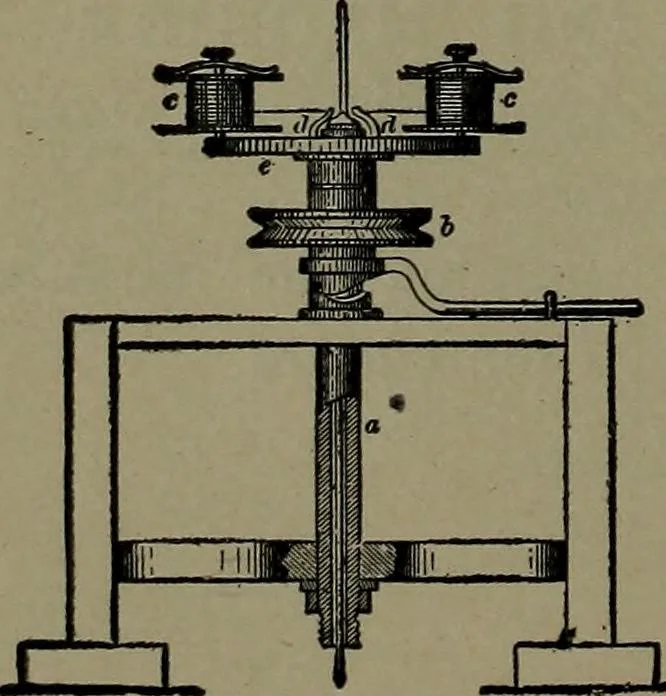

. WIRE-DRAWING MACHINE. a^ the reel. 3, draw plate. <r, power drum, operated by gearbeneath the bench. When the wireis all wound on the drum it ischanged to the reel and drawn ina reverse direction. … 1558. WIRE-COVERING MACHINE.—The wire is passed through a hollow re-volving spindle <2, having a small longitu-dinal motion from a vibrating cam to lapthe threads. The face plate revolving withthe spindle carries two or more spools, c^ c,with guide eyes, d, d, vibrating with thespindle.…
Mechanical movements
