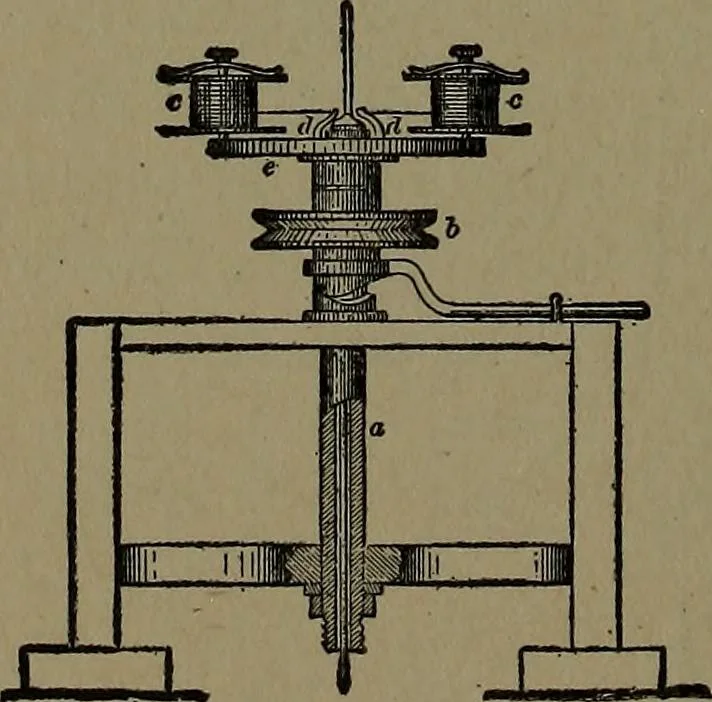

. WIRE-DRAWING MACHINE. <2, the reel. b^ draw plate. <r, power drum, operated by gearbeneath the bench. When the wireis all wound on the drum it ischanged to the reel and drawn ina reverse direction. … 1558. WIRE-COVERING MACHINE.—The wire is passed through a hollow re-volving spindle ^, having a small longitu-dinal motion from a vibrating cam to lapthe threads. The face plate revolving withthe spindle carries two or more spools, <r, c^with guide eyes, d^ </, vibrating with thespindle.…
