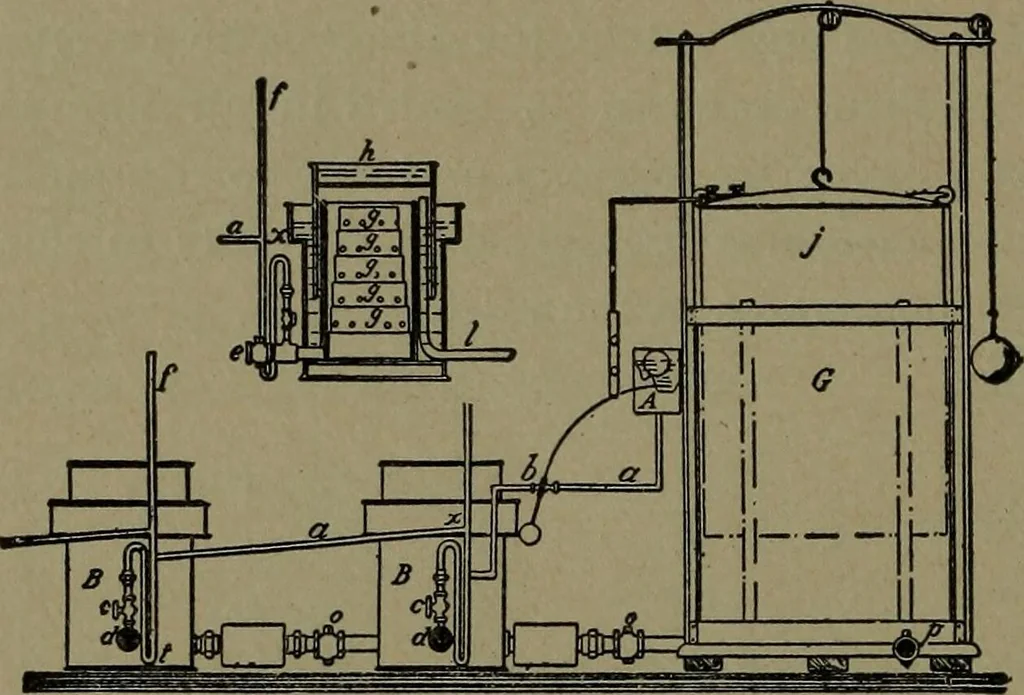

392 MISCELLANEOUS DEVICES. 1629. ACETYLENE GAS GENERATOR, Troubetzkoymodel. Has a water flow governed by the rise in the holder. J, Bal-anced gas holder; G,water seal tank; B, B,generators, two or four;A, small water tank ; a,pipe to convey water togenerators; /?, govern-ing valve, operated bythe… … 1630. Section of gen-erator. The water en- ters the generators successively through the inverted siphon ;pans of carbide sealed by the cap h in the annular water tank. d <i) 5 <b>
