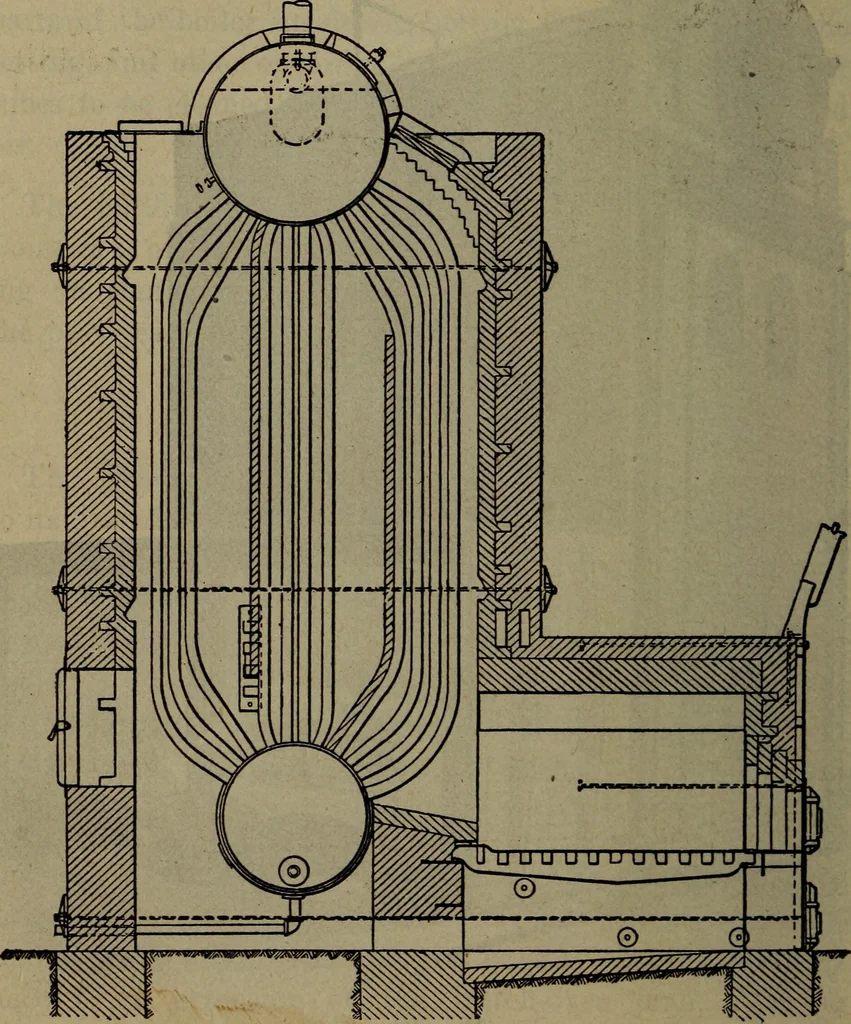

Fig. 24erie city water tube boiler nace and proportionate increase of grate surface, whilethe length of the grate may be made such as to give the• desired ratio of grate to heating surface. 68 Steam Engineering The tubes are so spaced that any one of them may becut out, removed and replaced without… … Fig. 25side elevation erie city water tube boiler any other. The entire boiler is suspended, as the engrav-ings show, from the upper drum, giving perfect flexibility Erie City Water Tube Boiler 59 and freedom to adjust itself to varying conditions of tem-perature and stress. The sufficiency of the…
