Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 46

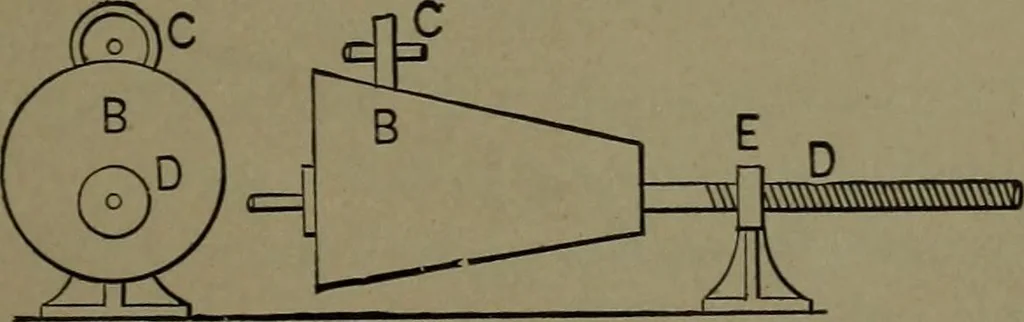

94. VARIABLE TRANS-MISSION OF MOTION,from an eccentric conicalpulley to a friction pulley.The riding pulley C traversesthe cone, which moves forward or backward by the rotation of thescrew in the nut stud E, producing a progressive variable motionin the pulley C, increasing or decreasing as the… … 36 TRANSMISSION OF POWER.
Mechanical movements
