Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 339

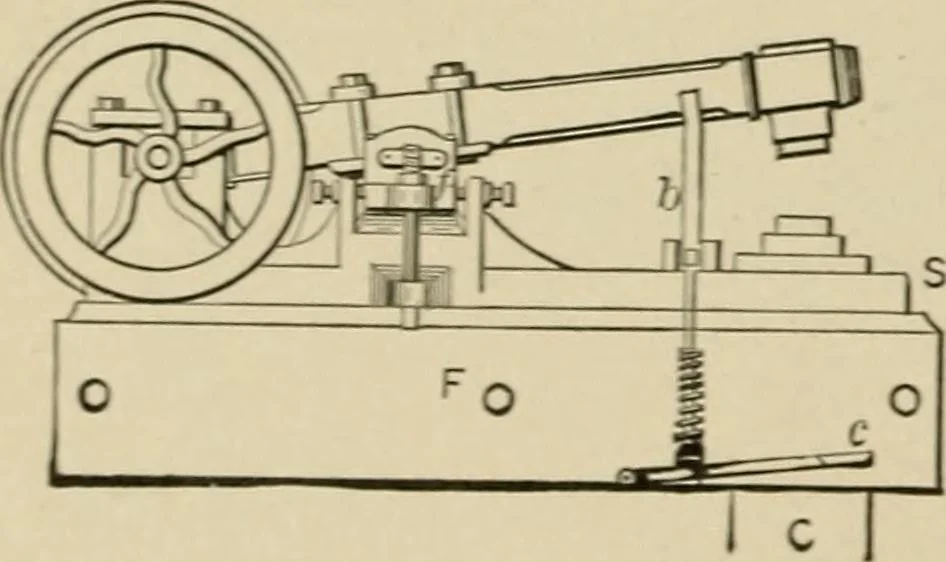

1363. REVOLVING R.1PID-BLOW HAM-MER.—The centrifugal action of the revolvingarms throws the hammers outward. … 1364. HELVE TRIP HAM-MER.—An ancient device yet inuse. The treadle stops the actionof the hammer by disengaging thebell-crank catch />. Used for smallwork. MILL AND FACTORY APPLIANCES. 33^ 1365. FRICTION DROP HAMMER.—The ham-mer head is attached to a hardwood board running be-tween friction…
