Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 54

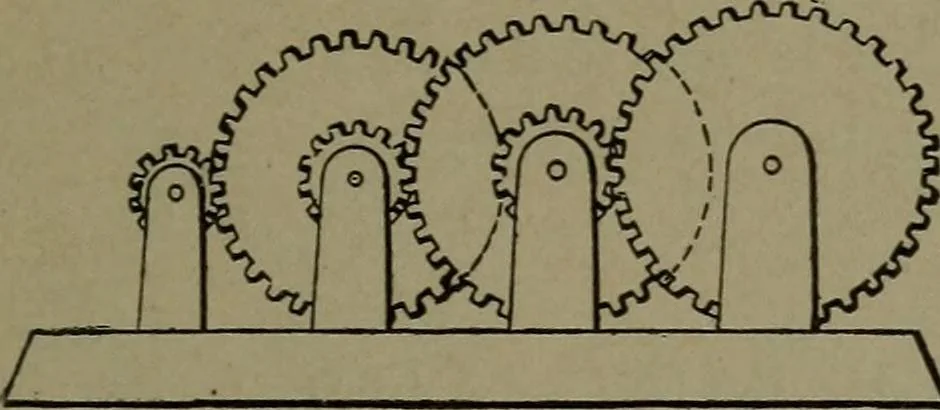

132. OBLIQUE SPUR AND BEVEL GEAR. —An oblique tooth spur gear and an obliquebevel gear, operating shafts running at an angularposition. 133. OBLIQUE BEVEL GEAR on shafts atright angles and crossing out of axical plane. 134. GEAR TRAIN—Solutionfor increased speed: Divide themultiple of the number of…
Mechanical movements
