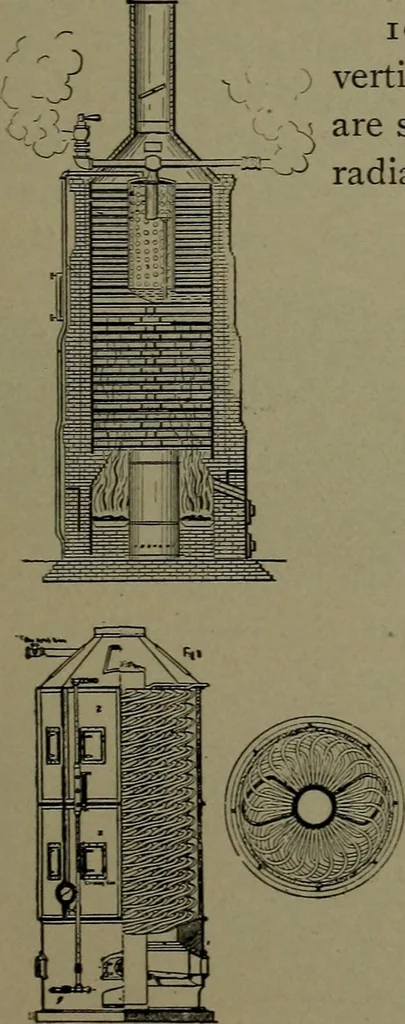

190. YARROW WATER TUBE BOILER.—Inclined sections of straight tubes from water-headers each side of the lire grate to a large steamdrmn above. Iron casing lined with fire tile.This design is for a marine boiler. 191. BOYERSTUBE BOILER. WATER FurnaceCoils over the fire are connected fromcirculating… … 192. HAZELTON BOILER.—A centralvertical drum in which tubes, with closed ends,x^ are screwed radially. The grate is beneath the§) -^ radial tubes and around the base of the drum. 193. CLIMAX BOILER.—A centralvertical water and steam drum, with benttubes expanded in it, and inclined to facili-tate…
