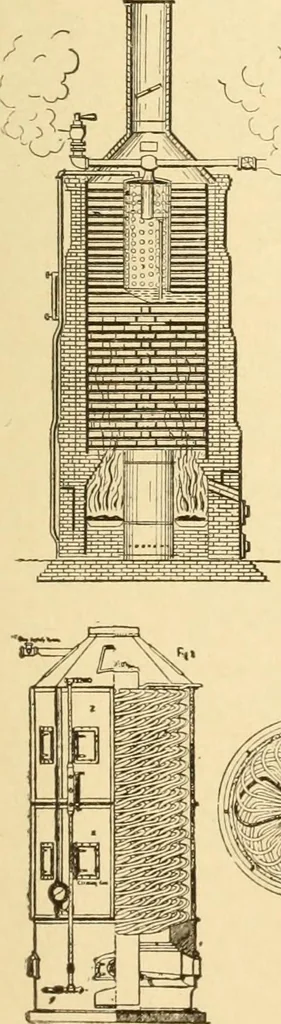

190. YARROW WATER TUBE BOILER. —Inclined sections of straight tubes from water-headers each side of the lire grate to a large steamdrmn above. Iron casing lined with fire tile.This design is for a marine boiler. 191. BOYERS WATERTUBE BOILER. —Furnace walls are coils of pipe. Coilsover the fire are… … 192. « HAZELTON BOILER.—A central^ vertical drum in which tubes, with closed ends,^.-^ are screwed radially. The grate is beneath the^^-^ radial tubes and around the base of the drum. 193. CLIMAX BOILER.—A centralvertical water and steam drum, with bent^^^ tubes expanded in it, and inclined to…
