Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 83

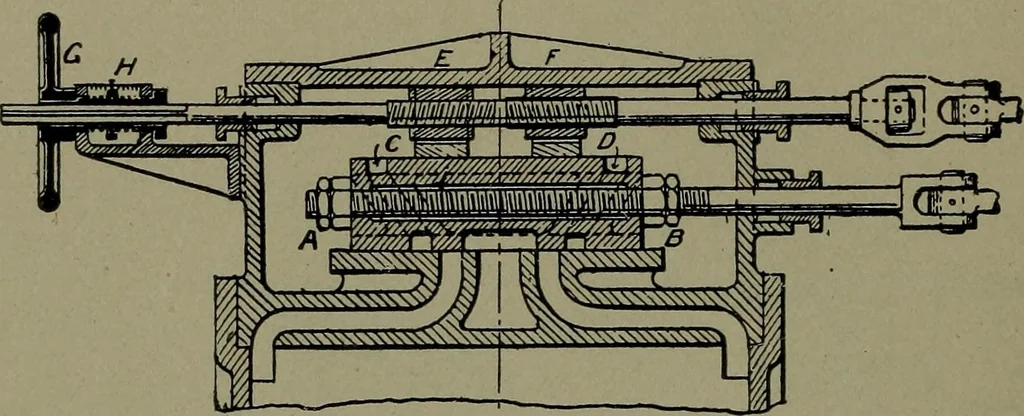

240. DOUBLE-PORTED SLIDEVALVE and adjustment by doublenuts in the back of the valve. … 241. MEYER CUT-OFF VALVE.—C, D, Slide valve withperforated ports. The supplementary or cilt-off valves are adjustedto the required distances, to meet the required cut-off, by a right andleft screw, which has an index H, and wheel G, for turning the screwfor cut-off adjustment on the outside of the…
Mechanical movements
